RET Control Cable Assembly

VET Control Cable are designed for RET System. / AISG 8pin, D-Sub 9pin, D-Sub 15pin. / Female and Male.

Category:

RF Coaxial Cable Assembly

Keywords:

VET Control Cable


Contact

Product Description

 Description

Our VET series control cable assemblies are designed for RET systems to enable remote control of the RCU.
AISG connectors provide a reliable and tight connection of the contacts in the line.
The DB9 and DB15 connector body is made of plastic that is strong and resistant to aggressive area, with gold­plated copper contacts.
The regular cable configuration is 5-core, 2*0.32mm(24AWG) data conductor and 3*0.75mm(20AWG) power conductor and the length of RET control cable is generally less than 100 meters.

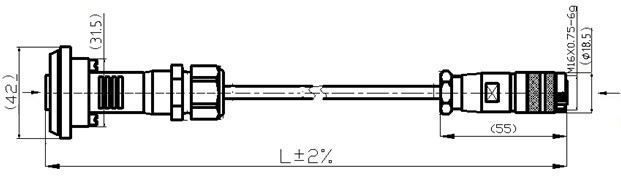

RET Control Cable with Female and Male AISG  Connector structure

RET Control Cable with Female and Male AISG  Connector

RET Control Cable with Female and Male AISG  Connector
6pin Male and Female AISG Connector

Item No.: VET-5-A6M-A6F
Protocol: AISG 2.0
Standard Impedance: ≤5mΩ
Operating Voltage: AC 250V
Anti-UV Test: UL1581 1000h
Power Conductor: 20AWG
Data Conductor:  24AWG
Total Conductors Quantity: 6
Length: 5 meters


RET Control Cable with Male DB9 and Female AISG Connector structureRET Control Cable with Male DB9 and Female AISG Connector structure2

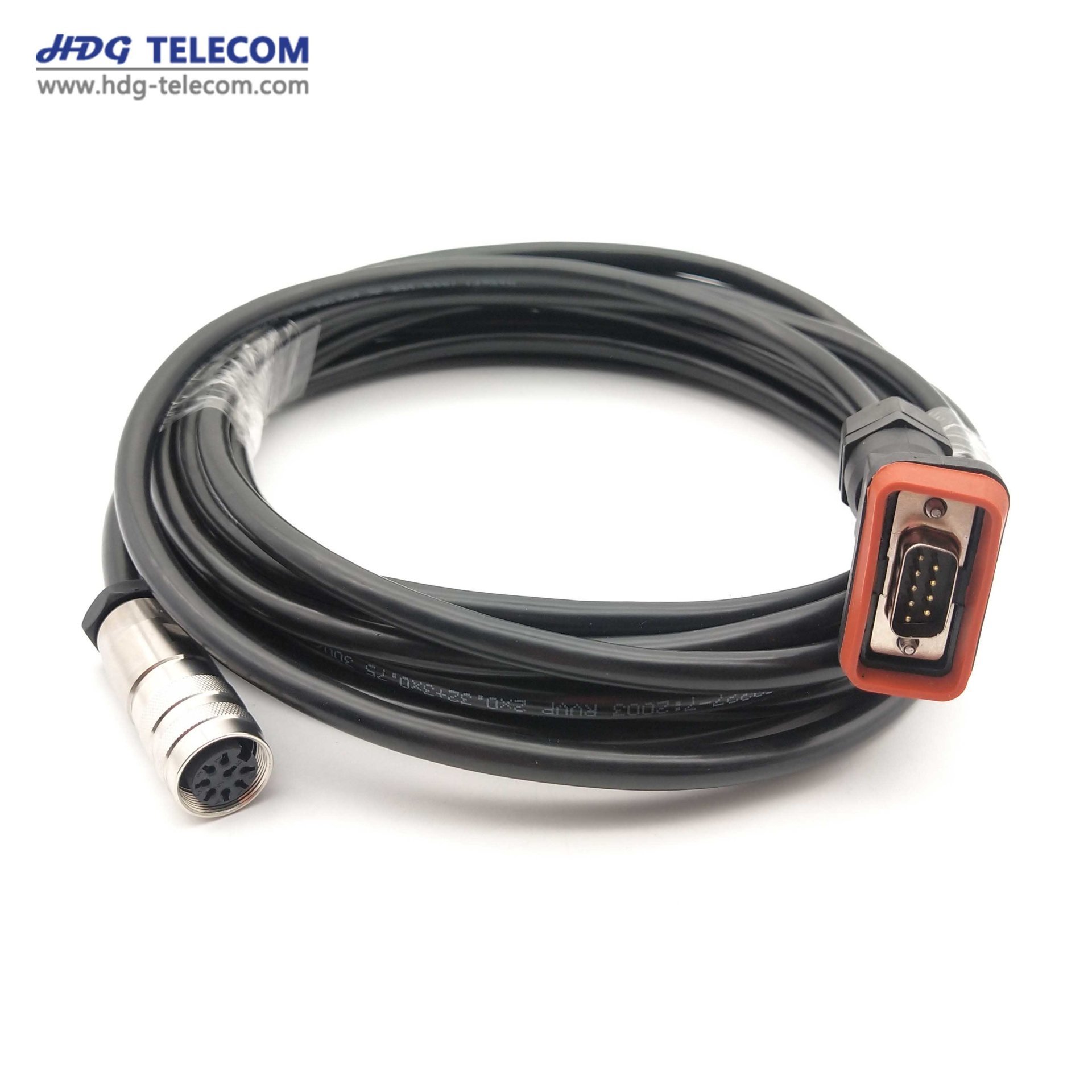

RET Control Cable with Male DB9 and Female AISG Connector

RET Control Cable with Male DB9 and Female AISG Connector
DB9 Male and 8pin Female AISG Connector

Item No.: VET-10-A8F-DB9M
Protocol: AISG 2.0
Standard Impedance: ≤5mΩ
Operating Voltage: AC 250V
Anti-UV Test: UL1581 1000h
Power Conductor: 20AWG
Data Conductor:  24AWG
Total Conductors Quantity: 8
Length: 10 meters



Part Number

VET-L-A8F-DB9M

VET-L-A8F-DB15M

VET-L-A6M-A6F

VET-L-A8M-A8F
