1/2in Super Flexible Coaxial Jumper Cable

1/2in superflexible jumper cable with / 4.3-10 Connector / 7/16DIN Connector / N Connector Etc...

Category:

RF Coaxial Cable Assembly

Keywords:

1/2in superflexible jumper cable


Contact

Product Description

 Description

1/2 Superflexible Jumper Cables are used in areas that require extremely small bending radius such as between main feeders and antennas or between main feeders and RF equipment.Our HDG 1/2in superflexible cable assembly with outstanding electrical performance, low loss and high frequency.
Here you can find 1/2in Superflex Jumper Cable with different 4.3-10, 7/16DIN and N Type Connectors, and we can also provide jumper cable with boots.

  • JK ------------------------------------------------------------------------------------- Jumper cable

  • 12S ----------------------------------------------------------------------------------- 1/2in superflexible

  • 4310 ---------------------------------------------------------------------------------- 4.3-10 connector

  • D --------------------------------------------------------------------------------------- 7/16 DIN connector

  • N --------------------------------------------------------------------------------------- N Type connector

  • M(MC) -------------------------------------------------------------------------------- Male connector

  • F --------------------------------------------------------------------------------------- Female connector

  • W -------------------------------------------------------------------------------------- Right Angle

  • L --------------------------------------------------------------------------------------- Length



Item No.

Description

JK12S-L-4310MC-4310MC

JK12S-L-4310MC-4310MC-WB (With Boot)

1/2 In Super Flexible Jumper Cable with 4.3-10 Male (Screw Type) and 4.3-10 Male (Screw Type) connector

JK12S-L-NM-NM

JK12S-L-NM-NM-WB (With Boot)

1/2 In Super Flexible Jumper Cable with N Male and N Male connector

JK12S-L-4310MC-DF

JK12S-L-4310MC-DF-WB (With Boot)

1/2 In Super Flexible Jumper Cable with 4.3-10 Male (Screw Type) and 7/16 DIN Female connector

JK12S-L-DM-DF

JK12S-L-DM-DF-WB (With Boot)

1/2 In Super Flexible Jumper Cable with 7/16 DIN Male and 7/16 DIN Female connector

JK12S-L-DM-DMW

JK12S-L-DM-DMW-WB (With Boot)

1/2 In Super Flexible Jumper Cable with7/16 DIN Male and 7/16 DIN Right Angle Male connector

JK12S-L-4310M-4310MW

JK12S-L-4310M-4310MW-WB (With Boot)

1/2 In Super Flexible Jumper Cable with   4.3-10 Male and 4.3-10 Right Angle Male connector

JK12S-L-DM-DM

JK12S-L-DM-DM-WB (With Boot)

1/2 In Super Flexible Jumper Cable with 7/16 DIN Male and 7/16 DIN Male connector

JK12S-L-4310MC-DM

JK12S-L-4310MC-DM-WB (With Boot)

1/2 In Super Flexible Jumper Cable with 4.3-10 Male (Screw Type) and 7/16 DIN Male connector

JK12S-L-DF-DMW

JK12S-L-DF-DMW-WB (With Boot)

1/2 In Super Flexible Jumper Cable with 7/16 DIN Female and 7/16 DIN Male Right Angle connector

JK12S-L-DM-NM

JK12S-L-DM-NM-WB (With Boot)

1/2 In Super Flexible Jumper Cable with N Male and 7/16 DIN Male connector

JK12S-L-4310MC-DMW

JK12S-L-4310MC-DMW-WB (With Boot)

1/2 In Super Flexible Jumper Cable with 4.3-10 Male (Screw Type) and 7/16 DIN Male Right Angle connector

JK12S-L-4310WMC-DM

JK12S-L-4310WMC-DM-WB (With Boot)



1/2 In Super Flexible Jumper Cable with 4.3-10 Right Angle Male (Screw Type) and 7/16 DIN Male connector

JK12S-L-4310MC-NM

JK12S-L-4310MC-NM-WB (With Boot)

1/2 In Super Flexible Jumper Cable with 4.3-10 Male (Screw Type) and N male connector


1/2in superflexible Jumper Cable with 4.3-10 male connector

1/2in superflexible Jumper Cable with 4.3-10 male connector
Item No.: JK12S-L-4310MC-4310MC-WB
Interface connector: 4.3-10 male with bulit-in weatherproofing boot
VSWR: ≤1.12@DC-3G
PIM3@2×20w: ≤-160dBC
Frequency Range: DC-6000Mhz
Insertion Loss: ≤0.2+(0.209xL)dB
IP rate: IP68
Length: As request

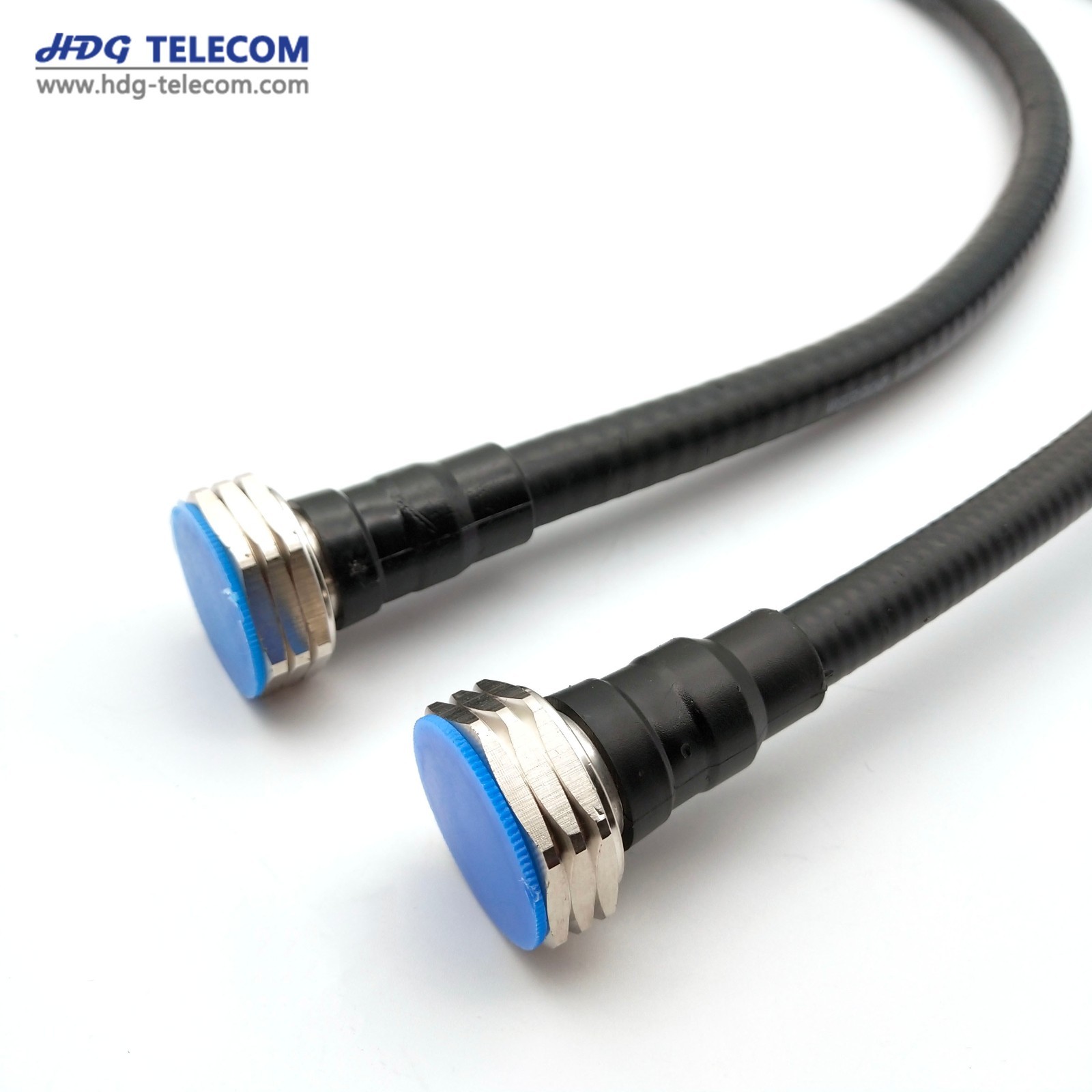

1/2in superflexible Jumper Cable with 7/16 DIN male connector

1/2in superflexible Jumper Cable with 7/16 DIN male connector
Item No.: JK12S-L-DM-DM
Interface connector: 7/16 DIN male
VSWR: ≤1.12@DC-3G
PIM3@2×20w: ≤-155dBC
Frequency Range: DC-6000Mhz
Length: As request







Part Number

JK12S-L-4310MC-NM-WB

JK12S-L-4310MC-NM

JK12S-L-4310MC-DMW-WB

JK12S-L-4310MC-DMW

JK12S-L-4310MC-DM

JK12S-L-4310MC-DM-WB

JK12S-L-4310MC-DF-WB

JK12S-L-4310MC-DF

JK12S-L-4310MC-4310MC-WB

JK12S-L-4310MC-4310MC

JK12S-L-NM-NM-WB

JK12S-L-NM-NM

JK12S-L-DM-DF

JK12S-L-DM-DF-WB
