Multi-Diameter Diameter Adjustable Sealing Modules
Application: cable or pipe sealing<br> Feature: multi-diameter<br> Material: 100% EPDM<br> Size: detail as per table
Category:
Cable/Pipe Transit System
Keywords:
Solid corner compensation module kits
Solid Compensation Modules
LM Multi-diameter Sealing Modules
Contact
Product Description

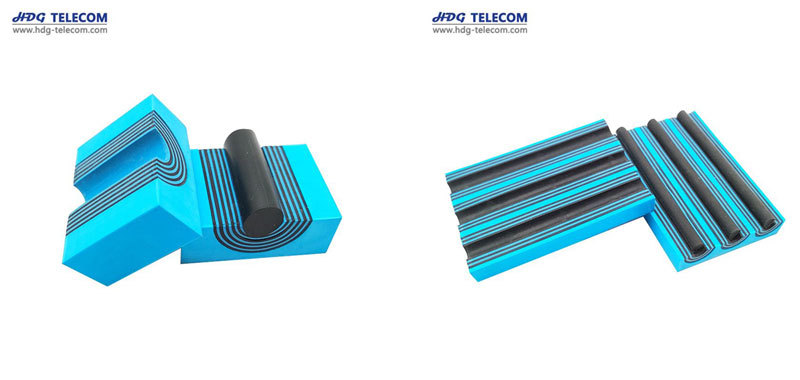

Multi-diameter sealing modules (changeable diameter block with center plugs) consist of two halves. It is made of rubber with removable layer and a center core that enable perfect to fit a wide range of a cable or a pipe.
Adjustable diameter blocks’ cross section is square. SM sealing modules and LM sealing modules two series are available for choices. LM sealing solution are based on 60mm depth, SM component seal are based on 30mm depth.
Here are the specific specifications：

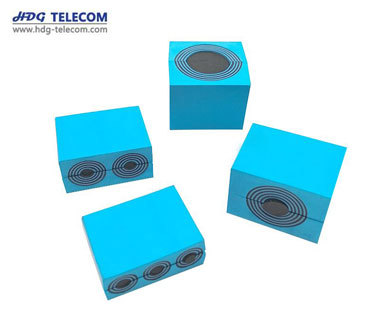

SM Multi-diameter Sealing Modules
Styles: with center plugs
Depth: 30mm
Matchable cable range: 3-54mm
Material: 100%EPDM
|
Part No: |
Number of cables |
cable/pipe diameter(mm) |
Extremal size |
|
MDS-M-SM15 |
1 |
3-11 |
15*15*30 |
|
MDS-M-SM1540 |
3 |
3.5-10.5 |
15*40*30 |
|
MDS-M-SM20 |
1 |
4-14.5 |
20*20*30 |
|
MDS-M-SM2040 |
2 |
3.5-16.5 |
20*40*30 |
|
MDS-M-SM30 |
1 |
10-25 |
30*30*30 |
|
MDS-M-SM40 |
1 |
21.5-34.5 |
40*40*30 |
|
MDS-M-SM40 10-32 |
1 |
9.5-32.5 |
40*40*30 |

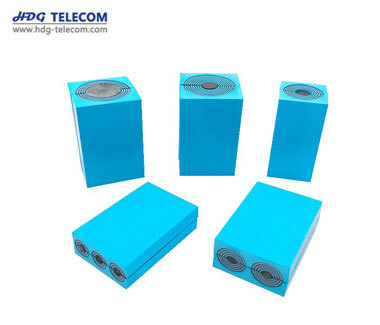

LM Multi-diameter Sealing Modules
Styles: with and without center plugs
Depth: 60mm
Matchable cable range: 3-99mm
Material: 100%EPDM
|
Part No: |
Number of cables |
cable/pipe diameter(mm) |
Extremal size |
|
MDS-M-LM15 |
1 |
3-11 |
15*15*60 |
|
MDS-M-LM1540 |
3 |
3.5-10.5 |
15*40*60 |
|
MDS-M-LM20 |
1 |
4-14.5 |
20*20*60 |
|
MDS-M-LM2040 |
2 |
3.5-16.5 |
20*40*60 |
|
MDS-M-LM30 |
1 |
10-25 |
30*30*60 |
|
MDS-M-LM40 |
1 |
21.5-34.5 |
40*40*60 |
|
MDS-M-LM40 10-32 |
1 |
9.5-32.5 |
40*40*60 |
|
MDS-M-LM60 |
1 |
28-54 |
60x60x60 |
|
MDS-M-LM60 24-54 |
1 |
24-54 |
60x60x60 |
|
MDS-M-LM90 |
1 |
48-71 |
90x90x60 |
|
MDS-M-LM120 |
1 |
67.5-99 |
120x120x60 |

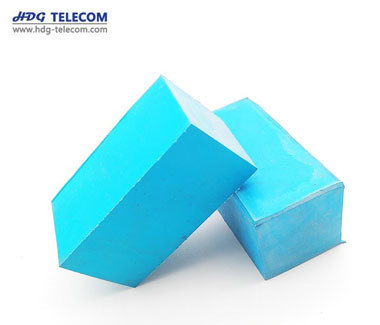

Solid Compensation Modules
Solid compensation modules take the place of LM or SM modules, space reserved for future changes and save cost.
Application: cable or pipe sealing.
Feature: space reserved for future changes and save cost.
Material: 100%EPDM
|
Part No: |
External dimension(mm) Height x Width x Depth |
|
MDS-SCM-LM05120 |
5*120*60 |
|
MDS-SCM-LM10120 |
10*120*60 |
|
MDS-SCM-LM15 |
15*15*60 |
|
MDS-SCM-LM20 |
20*20*60 |
|
MDS-SCM-LM30 |
30*30*60 |
|
MDS-SCM-LM40 |
40*40*60 |
|
MDS-SCM-LM60 |
60*60*60 |

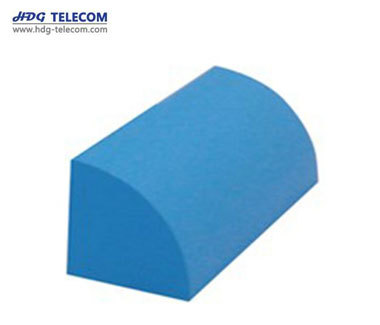

Solid corner compensation module kits for SRC frames
|
Part No: |
Numbers of modules / kit |
External dimension(mm) Height x Width x Depth |
|
MDS-SCM-LM20RC |
4 modules kit |
20x20x60 |
|
MDS-SCM-LM20RC |
4 modules kit |
40x40x60 |
