Frame For Multi diameter Cable Sealing System

Application: cable or pipe sealing
Material: 304 stainless steel
Size: as per require

零售价

0.0

元

市场价

0.0

元

浏览量:

1000

产品编号

AS-XX-XX

所属分类

Cable/Pipe Transit System

Quantity

库存:

关键词:

Cable Sealing Module Frame

Roxtec Cable Entry System



Product Details

[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[产品参数, 参数]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]

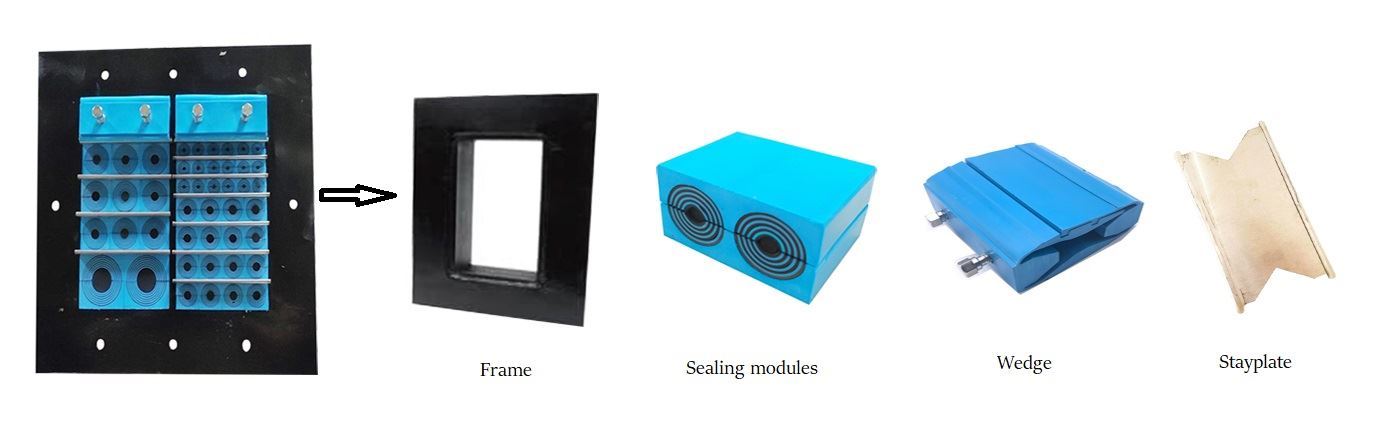

Frame For Multidiameter Cable Sealing System

Introduction:

Frame is a metal frame available with a single opening, or in combinations with several openings in width and/or height.

Dimensions and Packing Space:

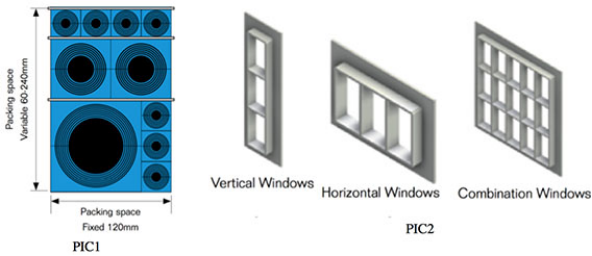

The inside dimensions of each single window are most commonly standardized to120mm width, with varying heights. The interior height range of each single windows variable from 60mm to 240mm,as shown in PIC1.

Together, these interior dimensions are known as“Packing Space”. It should be noted that Packing Space does not include the space allocated to the mechanical compression wedge, only space where cables may seat.

Frame For Multidiameter Cable Sealing System

Combination frames

Frames often been designed as combination frames, where more than one packing window (120mm wide, x-height) are manufactured within the frame as a vertical addition, horizontal addition, or both, as shown in PIC2.

Flanged and Non-flanged Frames

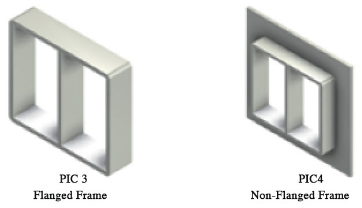

Manufacturer provide the option to have a flange included with the frame to provide increased tolerance for the aperture or cut-out size in the wall or floor, and to enable installation by bolting. Most onshore project designs benefit from flanged frames, PIC3; however in applications where the frame will be welded directly to a steel wall or floor structure, non-flanged frames may be specified, PIC4

Materials

The frame could be made from stainless steel, galvanized, aluminum and mild steel.

frame material

Regular sizes and items:

Item No	Selectable Material	Modules Type	Frame Openings	Structure type	Install Way	Picture
AS-F-G	mild steel, galvanized steel, stainless steel, aluminum	LM	selectable	holistic, have flanged	casting, welding
AS-F-GHM	mild steel, galvanized steel, stainless steel, aluminum	LM	selectable	holistic, have flanged	bolting
AS-F-B	galvanized steel	LM	selectable	assembled, have flanged	casting into concrete, or bolting
AS-F-SBTB	mild steel, galvanized steel, stainless steel	LM (2or3 row)	selectable	holistic, non-flanged	welding
AS-F-SK	mild steel, galvanized steel ,stainless steel	LM (1row) or LM+SM	selectable	holistic, non-flanged	welding
AS-F-SRC	mild steel, galvanized steel ,stainless steel	LM	selectable	holistic, non-flanged corner radius 20/40	welding
AS-F-S	mild steel, galvanized steel ,stainless steel, aluminum	LM	selectable	holistic, non-flanged	welding
AS-F-FC	mild steel, galvanized steel ,stainless steel	LM	selectable	holistic, have flanged	bolting
