Other Accessories For Cable Entry System
Other accessories part for cable and pipe transit system
Category:
Cable/Pipe Transit System
Keywords:
Lubricant
Stayplates
Wedge Kit
Contact
Product Description
|

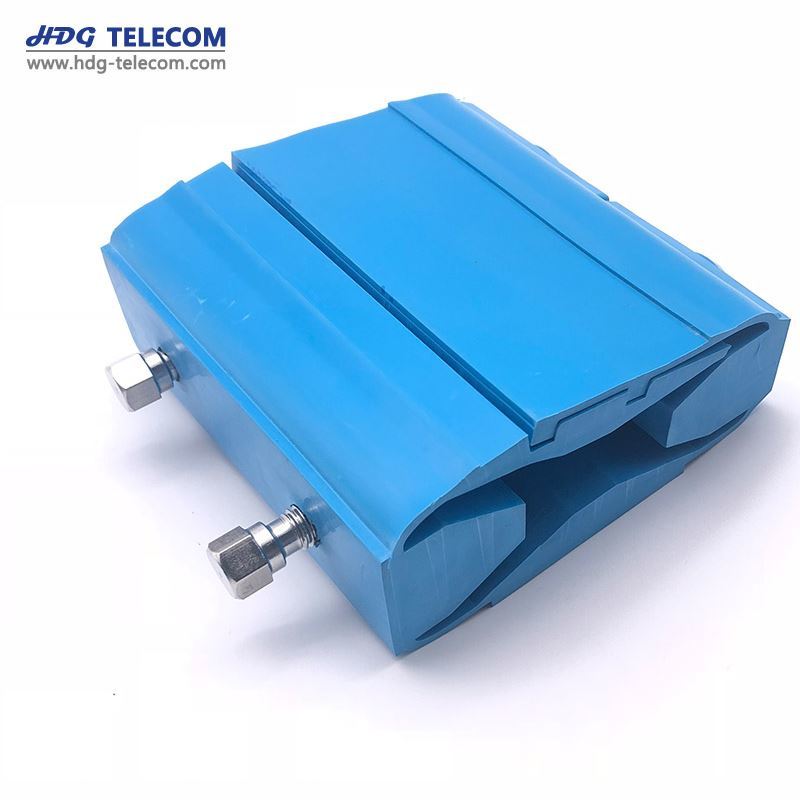

Wedge Kit |
The wedge is used in frames with a rectangular packing space without built-in compression.
Compresses and seals the installation of cables, pipes, modules and stayplates.
The wedge is for use with our LM frames and components or Roxtec's RM frames and components.
|
Item No |
Description |
|---|---|
|
MDS-WK-W1LM60B |
304 SS, wedge kit 60mm width, use for LM modules group |
|
MDS-WK-W1LM120B |
304 SS, wedge kit 120mm width, use for LM modules group |
|

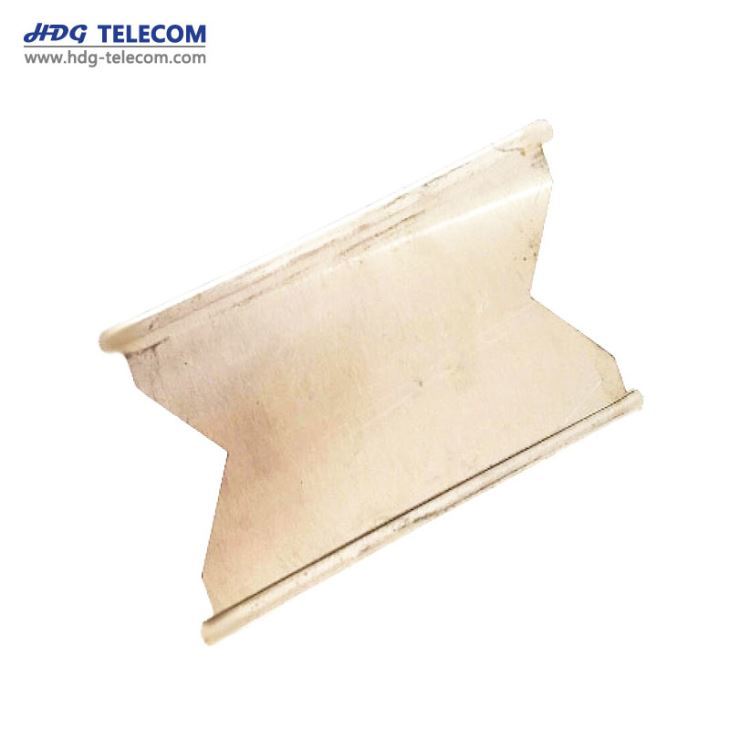

Stayplates |
Stayplates are used for pull-out resistance against forces in cables and pipes.
To be inserted between rows of modules in frames with a rectangular packing space and no built-in compression.
For use with our LM series frames and components or Roxtec’s RM frames and components.
| Item No | Material | Width |
|---|---|---|
| MDS-SPLM60 |
304 stainless steel |
60mm |
|
MDS-SPLM60-M316 |
316 stainless steel | 60mm |
|
MDS-SPLM120 |
304 stainless steel | 120mm |
|
MDS-SPLM120-M316 |
316 stainless steel | 120mm |
|

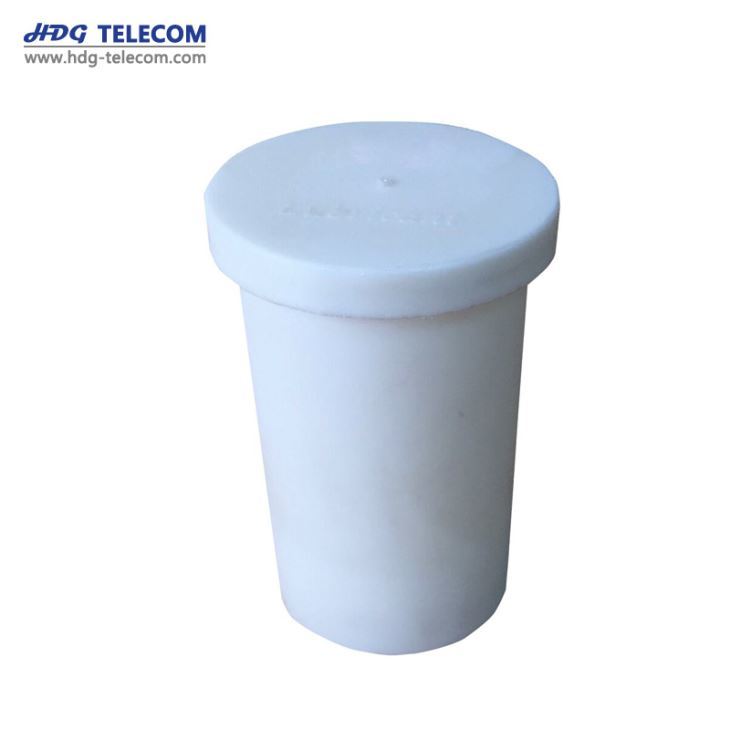

Lubricant |
Lubricant-natural animal fat, used to lubricate sealed modules, compression units and the inside of the frame.
It simplifies installation, improves compression efficiency and guarantees seal quality.
Lubricants are used to reliably seal and ensure uniform compression of the input parts.
Works with all types of frames, couplings and kits.
