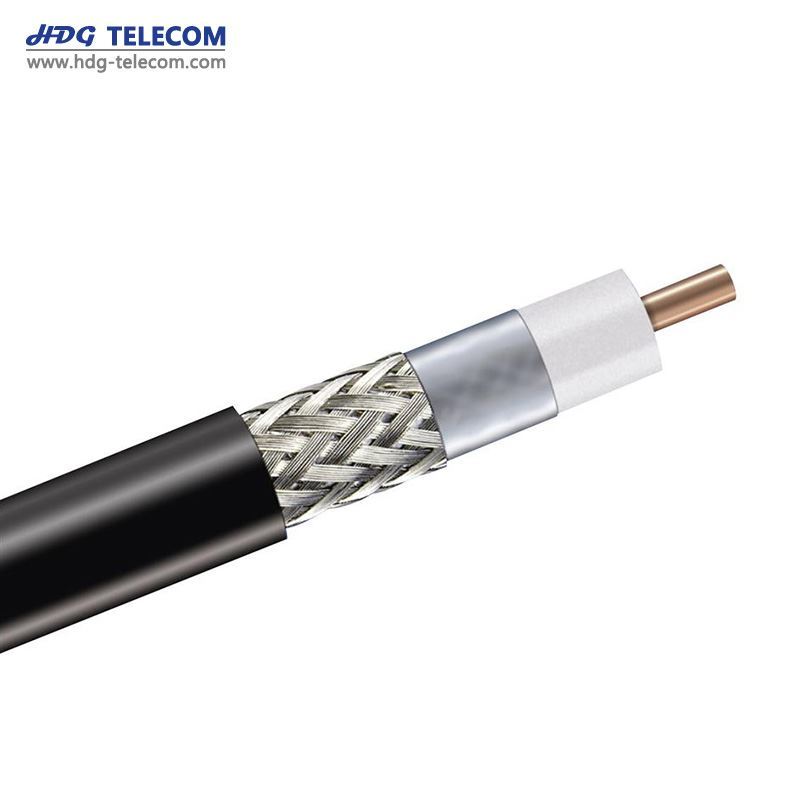

KMR Series Braided Coaxial Cable

KMR195, KMR200, KMR240, KMR300 KMR400, KMR500, KMR600 cable.
Braided coaxial cable, low loss & low VSWR
零售价
0.0
市场价
0.0
浏览量:
1000
产品编号
RFCC-KMR***
Quantity
-
+
库存:
0
关键词:
KMR Braided Coaxial Cable
Product Details
[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[产品参数, 参数]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]

 Description

KMR Series Coaxial Cable is a low loss, braided coaxial cable offers similar performance compared to corrugated copper products but with higher flexibility and simplified connectorization. They can be used in almost any application where handling characteristics, improved shielding and low loss is required.

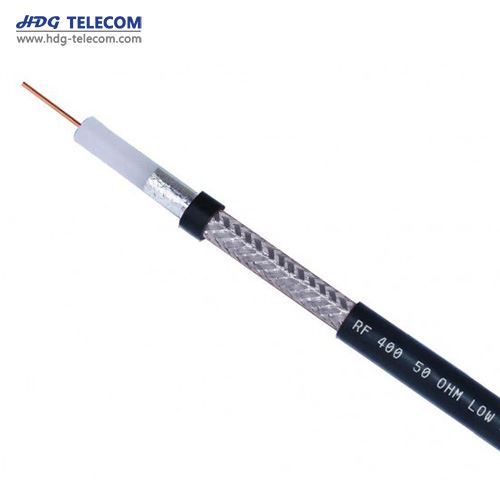

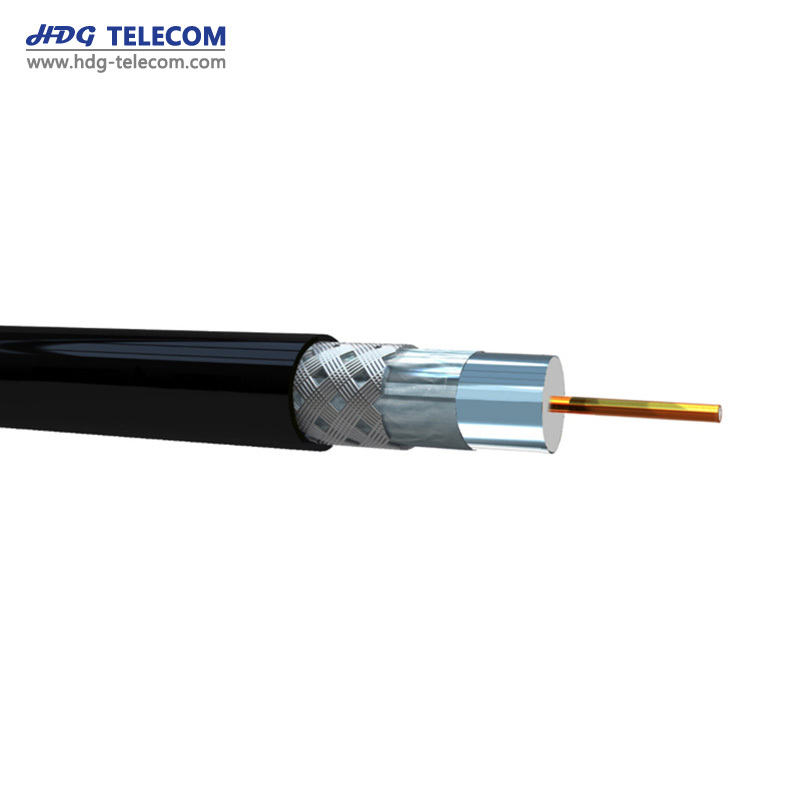

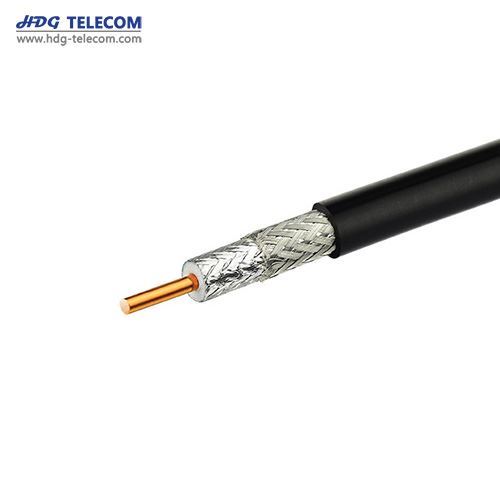

KMR COAXIAL CABLE STRUCTURE

Widely application of KMR Series cable
# Jumper assemblies in wireless communication systems.

# Short antenna feeder runs.

# WLL, GPS, LMR, WLAN, WISP, WiMax, SCADA, Mobile antennas

 Despriction

RFCC-KMR195

Item No.:RFCC-KMR195
1- Inner conductor : Solid bare copper φ 0.94mm
2- Dielectric : Foam PE φ 2.79mm
3- Outer conductor : Aluminum tape (/)
4- Overall braid : Tinned copper φ 3.53mm
5- Jacket : Non-hologan black PE or Black PE φ 4.95mm
KMR195 cable, which drop-in replacment for RG58, RG142 cable. It is a flexible low loss, braided coaxial cable offers similar performance compared to corrugated coaxial cable, but with higher flexibility and simplified connectorization.
It can be used in almost any application where handling characteristics, improved shielding and low loss is required.

RFCC-KMR200

Item No.: RFCC-KMR200

1- Inner conductor : Solid bare copper φ 1.12mm
2- Dielectric : Foam PE φ 2.95mm
3- Outer conductor : Aluminum tape (/)
4- Overall braid : Tinned copper φ 3.66mm
5- Jacket : Non-hologan black PE or Black PE φ 4.95mm
KMR200 cable is a flexible low loss, braided coaxial cable offers similar performance compared to corrugated coaxial cable, but with higher flexibility and simplified connectorization.

RFCC-KMR240

Item No.: RFCC-KMR240
1- Inner conductor : Solid bare copper φ 1.42mm
2- Dielectric : Foam PE φ 3.81mm
3- Outer conductor : Aluminum tape (/)
4- Overall braid : Tinned copper φ 4.52mm
5- Jacket : Non-hologan black PE or Black PE φ 6.10mm
KMR240 cable is a flexible low loss, braided coaxial cable offers similar performance compared to corrugated coaxial cable, but with higher flexibility and simplified connectorization.
It can be used in almost any application where handling characteristics, improved shielding and low loss is required.

RFCC-KMR300

Item No.: RFCC-KMR300
1- Inner conductor : Solid bare copper φ 1.78mm
2- Dielectric : Foam PE φ 4.83mm
3- Outer conductor : Aluminum tape (/)
4- Overall braid : Tinned copper φ 5.72mm
5- Jacket : Non-hologan black PE or Black PE φ 7.62mm
KMR300 cable is a flexible low loss, braided coaxial cable offers similar performance compared to corrugated coaxial cable, but with higher flexibility and simplified connectorization.
It can be used in almost any application where handling characteristics, improved shielding and low loss is required.

RFCC-KMR400

Item No.: RFCC-KMR400
1- Inner conductor : Copper-clad aluminum wire φ 2.74mm
2- Dielectric : Foam PE φ 7.24mm
3- Outer conductor : Aluminum tape φ 7.39mm
4- Overall braid : Aluminum Magnesium braided φ 8.10mm
5- Jacket : Non-hologan black PE or Black PE φ 10.16mm
KMR400 cable, which drop-in replacment for LMR400, CNT-400, RG8, 7D-FB cable. It is a flexible low loss, braided coaxial cable offers similar performance compared to corrugated coaxial cable, but with higher flexibility and simplified connectorization.
It can be used in almost any application where handling characteristics, improved shielding and low loss is required.

RFCC-KMR500

Item No.: RFCC-KMR500
1- Inner conductor : Copper-clad aluminum wire φ 3.61mm
2- Dielectric : Foam PE φ 9.40mm
3- Outer conductor : Aluminum tape (/)
4- Overall braid : Tinned copper φ 10.29mm
5- Jacket : Non-hologan black PE or Black PE φ 12.70mm
KMR500 cable is a flexible low loss, braided coaxial cable offers similar performance compared to corrugated coaxial cable, but with higher flexibility and simplified connectorization.
It can be used in almost any application where handling characteristics, improved shielding and low loss is required.



RFCC-KMR600

Item No.: RFCC-KMR600
1- Inner conductor : Copper-clad aluminum wire φ 4.47mm
2- Dielectric : Foam PE φ 11.56mm
3- Outer conductor : Aluminum tape (/)
4- Overall braid : Tinned copper φ 12.50mm
5- Jacket : Non-hologan black PE or Black PE φ 14.99mm
KMR600 cable is a flexible low loss, braided coaxial cable offers similar performance compared to corrugated coaxial cable, but with higher flexibility and simplified connectorization.
It can be used in almost any application where handling characteristics, improved shielding and low loss is required.

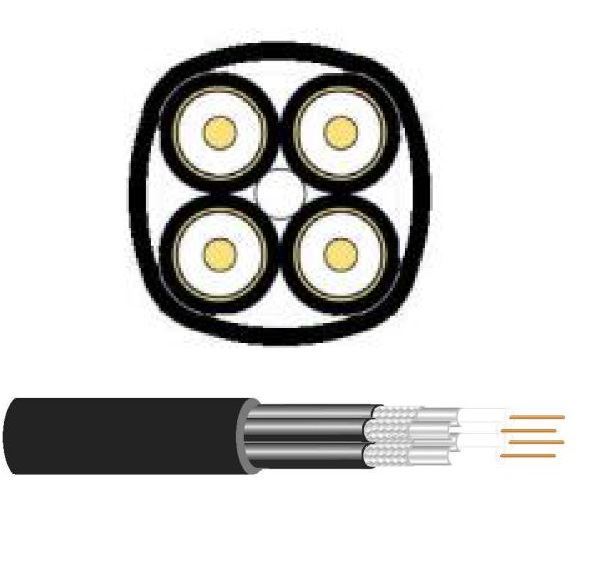

RFCC-KMR400X4C

Item No.: RFCC-KMR400X4C
1- Inner conductor : Copper-clad aluminum wire  φ 1*2.74mm
2- Dielectric : Foam PE  φ 7.24mm
3- First outer conductor : Bonded Aluminum foil tape  φ 7.45mm
    Second outer conductor : Tinned copper braiding, 168*0.15, 91% coverage
5- Inner Jacket : Black PE φ 10.29mm

    Outer Jacket : Black PE φ 27.00mm
KMR400 Bundled cable, owns multiple runs of KMR400 coaxial cable bundled with common polyethylene outer jacket.
It have 4 runs of KMR400 cable.
