RG Series Braided Coaxial Cable

RG6, RG8, RG58, RG142, RG213, RG214, RG223
Braided coaxial cable, low loss & low VSWR
零售价
0.0
市场价
0.0
浏览量:
1000
产品编号
RFCC-RG*
Quantity
-
+
库存:
0
关键词:
RG Series Braided Coaxial Cable
RG Braided Coaxial Cable
Product Details
[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[产品参数, 参数]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]

Widely application of RG Series cable
    # Suitable for use in carrying radio transmission signals.

    # In audio control rooms, radio stations or as connections for external radio antennas.

    # In CATV and MATV applications.

    # In satellite links, radar, broadcast, aerospace, GPS and LAN/WAN application.

 Despriction



RFCC-RG6

Item No.: RFCC-RG6
1-  Inner conductor : Bare copper φ 1.02mm
2-  Dielectric : Foam PE φ 4.57mm
3-  Outer conductor : Tinned copper braid/Al Magnesium braid φ 5.22mm
4-  Jacket : Black PVC φ 6.90mm
RG6 Coaxial Cable owns 75 ohm nominal impendance. It is usually used for RF signal transmission in MATV, CATV and CCTV applications.

RFCC-RG8

Item No.: RFCC-RG8
1-  Inner conductor : Stranded bare copper φ 2.74mm
2-  Dielectric : Foam PE φ 7.24mm
3-  Outer conductor : Aluminum tape (/)
4-  Overall braid : Aluminum Magnesium braided φ 8.13mm
5-  Jacket : Black PE φ 10.16mm
RG8 cable is 50 ohm coaxial cable used for RF applications. It features a stranded bare copper center conductor with foamed polyethylene dielectric (PE) and a double shielding with a PE jacket.
RG 8 is a type of coaxial cable suitable for use in carrying radio transmission signals. They are found mostly in audio control rooms, radio stations or as connections for external radio antennas.

RFCC-RG58

Item No.: RFCC-RG58
1-  Inner conductor : Tinned copper  φ 0.18mm*19 strand
2-  Dielectric : Solid PE φ 2.95mm
3-  Outer conductor : Tinned copper braid φ 3.50mm
4-  Jacket : Black PVC φ 4.95mm
RG 58 cable usually used in CATV and MATV applications.
RG58 Coax features a stranded tinned copper conductor, solid polyethylene insulation, a tinned copper braid shielding, black, PVC jacket.

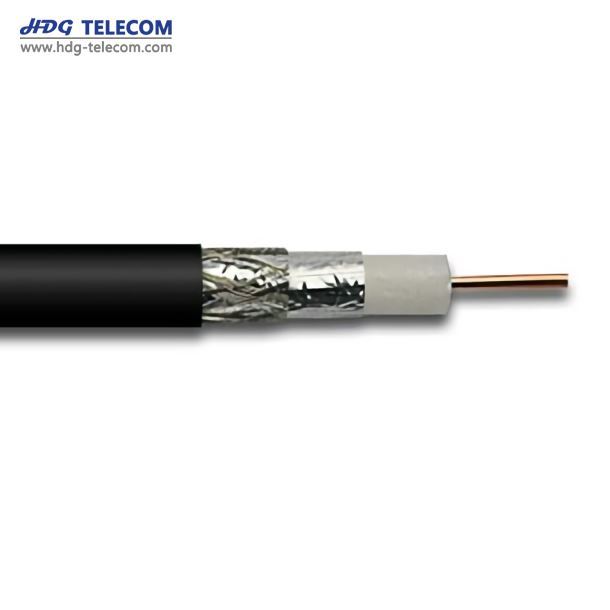

RFCC-RG59-Q

Item No.: RFCC-RG59-Q
1-  Inner conductor : Tinned copper  φ 0.81mm*1
2-  Dielectric : Foam PE φ 3.66mm
3-  Outer conductor :
*1st layer: Bonded Al Foil(AF)
*2nd layer: Al Magnesium braid (AM) or Copper Alloy braid (CA), 60% coverage
*3rd layer: Un-Bonded Al Foil(AF)
*4th layer: Al Magnesium braid (AM) or Copper Alloy braid (CA), 40% coverage
4-  Jacket : Black PVC φ 4.95mm
RG59 Coaxial Cable owns 75 ohm nominal impendance.
It is usually used for RF signal transmission in CATV applications.

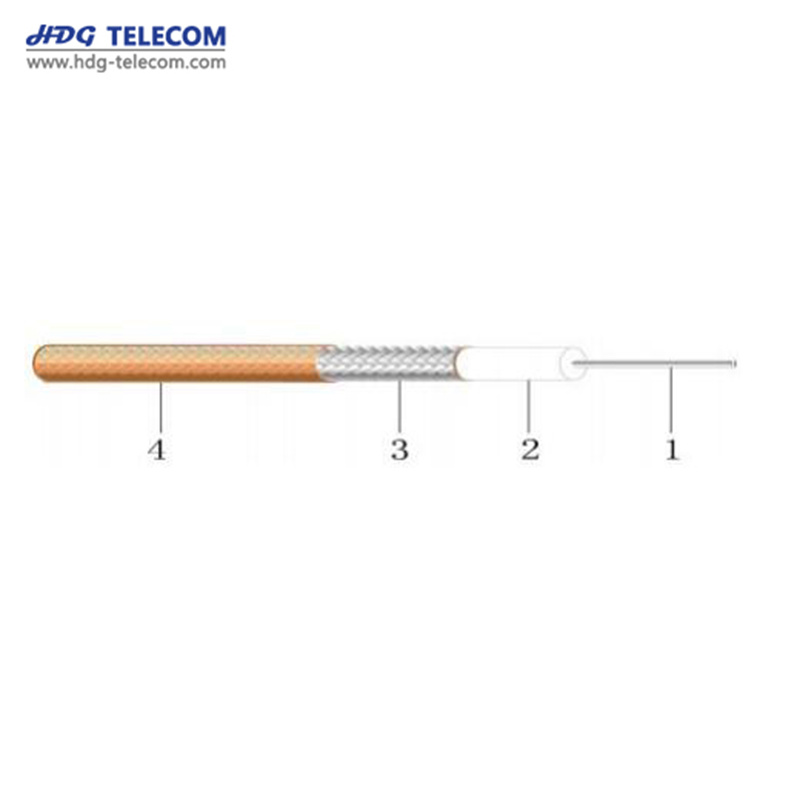

RFCC-RG142

Item No.: RFCC-RG142
1-  Inner conductor : Silver Cover copper φ 0.93mm
2-  Dielectric : White PTFE φ 3.00mm
3-  Outer conductor :
*1st layer: Silver Plated Copper φ 0.12mm*112
*2nd layer: Silver Plated Copper φ 0.12mm*112
4-  Jacket : Brown FEP φ 4.95mm
RG142 cable is an excellent solution for a vast range of applications, specifically in the military and aerospace industries. It is widely used for radio frequency, telecommunications, interconnects, and signal transfer applications in systems such as GPS, medical systems, and RADAR.

RFCC-RG316

Item No.: RFCC-RG316
1-Inner Conductor: Silver Covered Copper 7/0.18mm
2-Dielectric: White Solid PTFE φ1.52mm
3-Outer Conductor:
*1st braiding: Silver Plated Copper 144*0.15mm
*2nd braiding: Silver Plated Copper 168*0.15mm
4-Jacket: Brown FEB φ9.90
RG316 coax cable Often used for the transmission of radio frequency signals, RG316 cable can also be used in wireless communication, broadcast and military equipment. RG316 coax may also be used for high-frequency interconnections between PCB in telecommunications equipment.

RFCC-RG393

Item No.: RFCC-RG393
1-Inner Conductor: Silver Covered Copper 7/0.80mm
2-Dielectric: White Solid PTFE φ7.24mm
3-Braiding: Silver Plated Copper 80*0.10mm
4-Jacket: Brown FEB φ2.54
RG 393 coax is commonly used in telecommunications and broadcast equipment. It is used for wireless communication and the transmission of radio frequency signals. This type of coaxial cable is often used in military equipment, as well as in commercial applications.

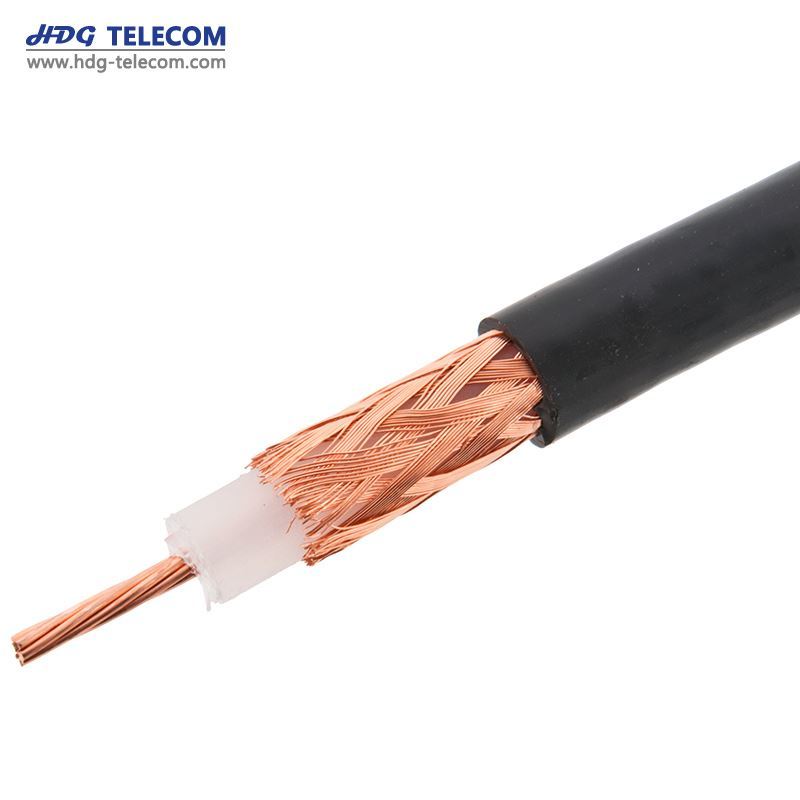

RFCC-RG213

Item No.: RFCC-RG213
1-  Inner conductor : Stranded bare copper φ 0.75mm*7 strand
2-  Dielectric : Foam PE φ 7.24mm
3-  Outer conductor : Bare copper wire braid φ 7.85mm
4-  Jacket : Black PVC φ 10.30mm
RG213 cable is 50ohm coaxial cable, owns stranded center conductor, single shielding. RG 213 coax cable is usually used in satellite links, radar, broadcast, aerospace, and LAN/WAN application.
It is also used in VHF(Very High Frequency) and UHF (Ultra High Frequency) application.
It is commercial grade, not Miltary-spec rated.

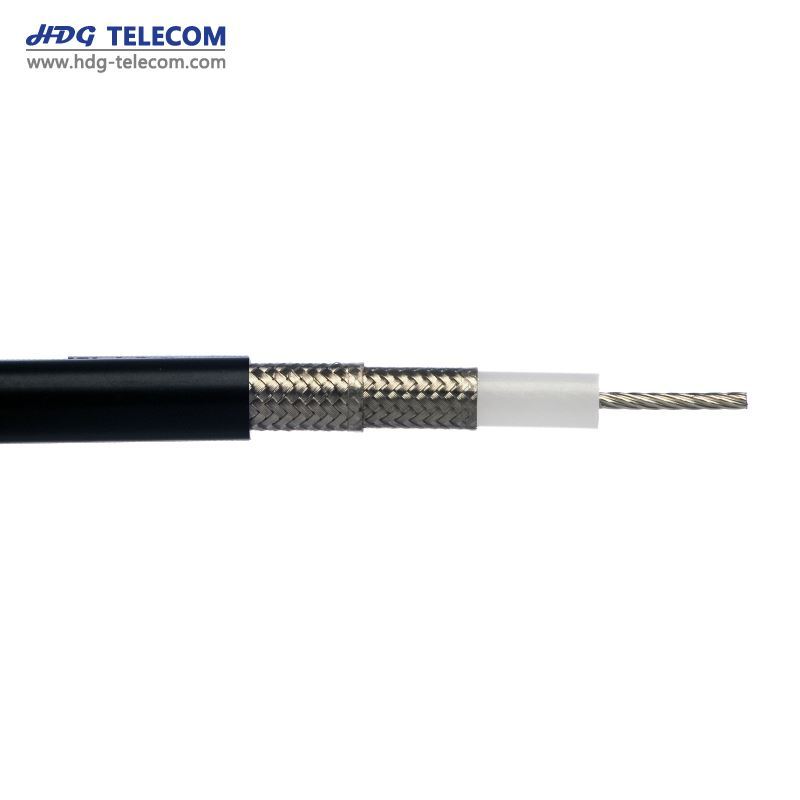

RFCC-RG214

Item No.: RFCC-RG214
1-  Inner conductor : Silver Plated Copper φ 0.75mm*7 strand
2-  Dielectric : Solid PE φ 7.24mm
3-  Outer conductor : (1st braiding) Silver Plated Copper φ 144*0.15mm
(2nd braiding) Silver Plated Copper φ 168*0.15mm
4-  Jacket : Black PVC φ 10.80mm
RG214 flexible coax cable is 50ohm coaxial cable and with a 0.425”PVC jacket. RG214 has 2 layers of shielding braid.
RG214 work under frequency 0-11GHz.
RG214 cable is widely used in radio frequency and microwave transmission in LAN networks.

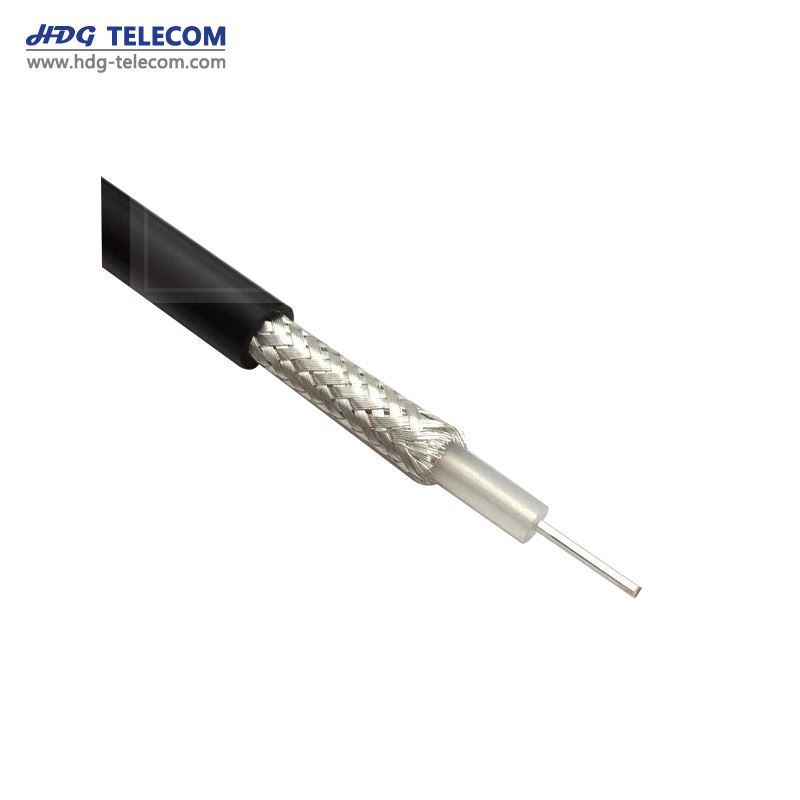

RFCC-RG223

Item No.: RFCC-RG223
1-  Inner conductor : Silver-coated copper wire φ 0.90mm
2-  Dielectric : Solid PE φ 2.95mm
3-  Outer conductor : Double layers of silver-coated copper braid φ 3.95mm
4-  Jacket : Black PVC φ 5.30mm
RG223 low loss coaxial cable has double shielding layers to provide better shielding and lower signal loss than RG58 and RG174.
RG223 cable are usually used for infrastructure of cellular Mobile, GPS, LAN, WAN...etc.
