Grounding Kit For 1/4 In Coaxial Cable

Spec.:For 1/4 in coaxial cable (Compatible with corrugated coaxial cables, braided coaxial cables) For this size cable, HDG Telecom provide below solution including: <br/> Framework type, clip-on, small universal, standard universal, standard grounding kit

Category:

Grounding Kit

Keywords:

grounding kit for 1/4\\\" cable


Contact

Product Description

HDG telecom grounding kit (earthing kit) is widely used in bts installation for waveguide grounding. It can prevent the damage to relevant devices which due to lighting stroke or large current.
These ground kits are made of pure copper to ensure perfect contact area without affecting the electrical transmission characteristics of coaxial cables, contact resistors, insulation resistors, etc. About the 1/4 in coaxial cable,we provide the following grounding kit options:

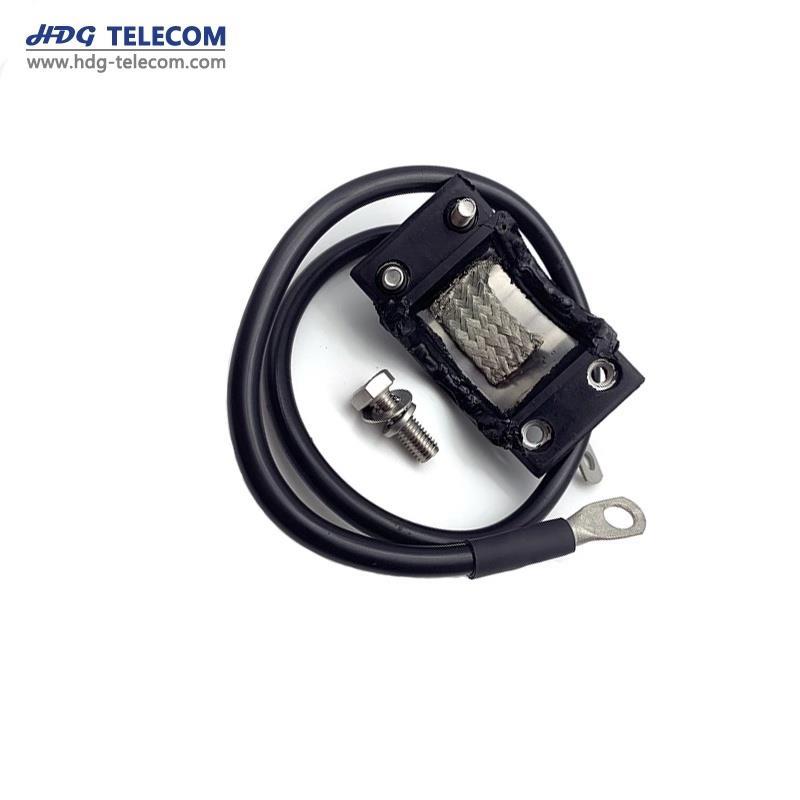

FRAMEWORK GROUNDING KIT FOR 1/4" CABLE

Framework grounding kit



Item No.: GK-FW14

Ground cable: 6 AWG (13.3mm2),1.0 meter(accept customization)

Lug:M8 one hole or two hole (Factory attached or Field attached)

Bolt:M8 x 25

Contact area:Braided tinned copper strip

Each kit include: grounding kit, installation hardwares

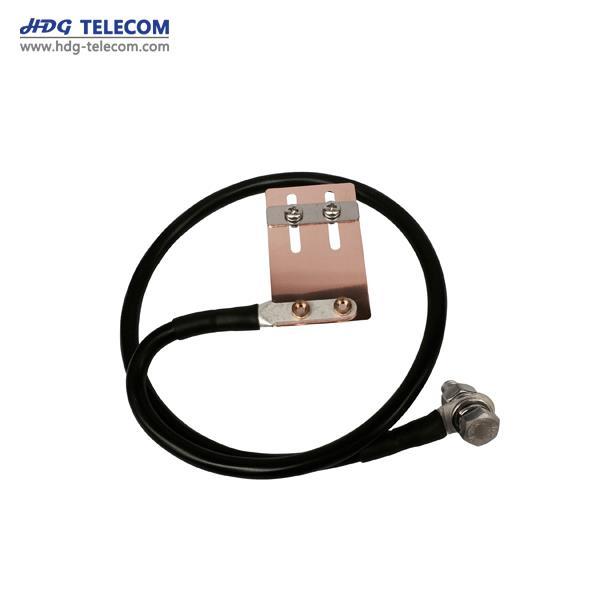

clip-on grounding kit for 1/4" cable

Clip-on grounding kit



Item No.: GK-CO14

Ground cable: 6 AWG (13.3mm2),1.0 meter(accept customization)

Lug:M8 one hole or two hole (Factory attached or Field attached)

Copper Bolt:φ6×6

Contact area:T2 copper

Each kit include: grounding kit, installation hardwares

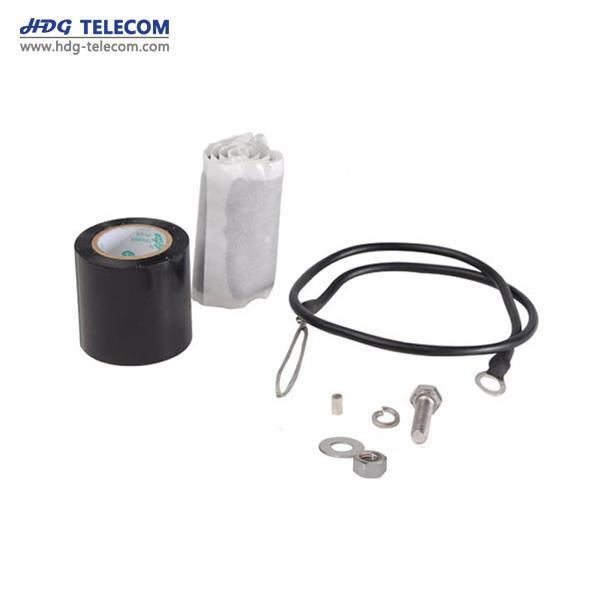

small universal grounding kit for 1/4" cable

Small universal grounding kit



Item No.: GKA-SUNV

Ground cable: 6mm2 , 1.0 meter(accept customization)

Lug:M8 one hole (Factory attached or Field attached)

Rivet Material: φ5×8.1

Contact area:Tinned copper

Each kit include: grounding kit, installation hardwares

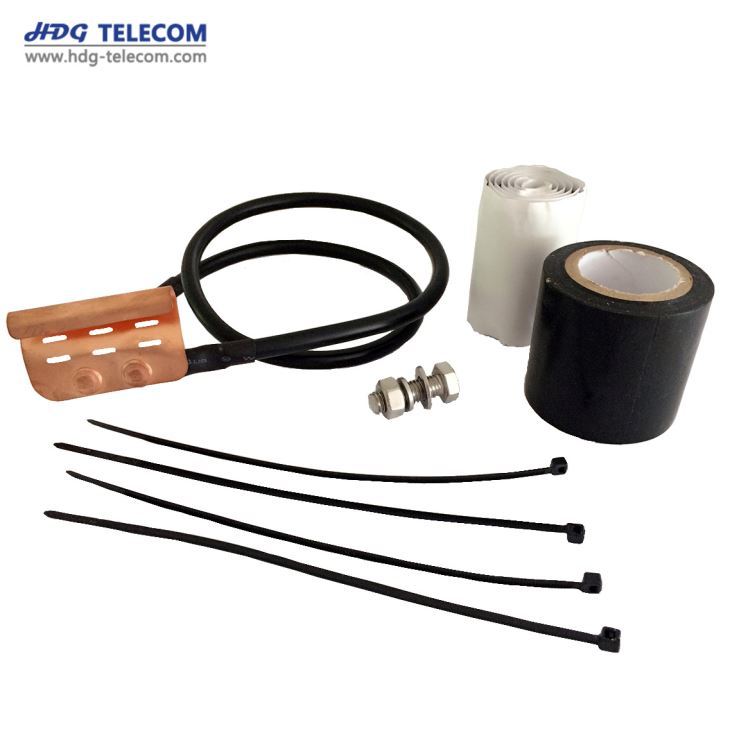

212948 grounding kit for 1/4" cable

Standard universal grounding kit



Item No.: GK-242948

Ground cable: 6AWG BV , 1.0 meter(accept customization)

Lug:M8 one hole or two holes (Factory attached or Field attached)

Tie-wraps: 3×150

Contact area:T2 copper

Each kit include: grounding kit, installation hardwares

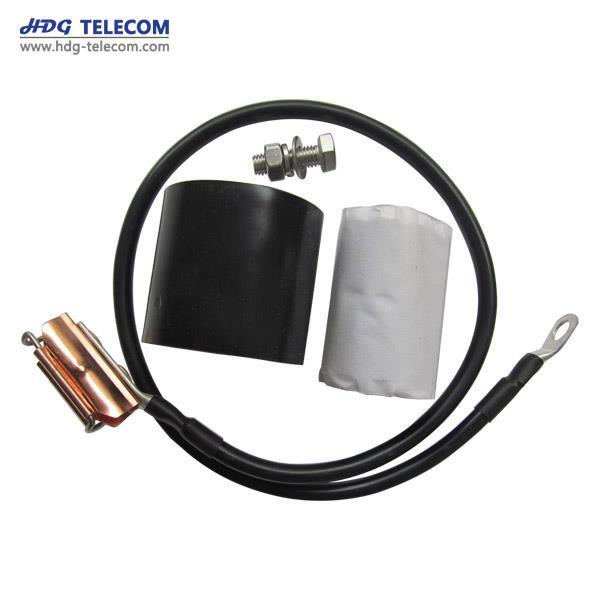

standard grounding kit for 1/4" cable

Standard grounding kit



Item No.: GKK-STD

Ground cable: 16mm2 ,1.0 meter(accept customization)

Lug:M8 one hole or two hole (Factory attached or Field attached)

Cross Bolt:M4 x 8

Contact area:T2 Copper

Each kit include: grounding kit, installation hardwares
