Grounding Kit For 1/2 In Coaxial Cable

Spec.:For 1/2 in coaxial cable (Compatible with corrugated coaxial cables, braided coaxial cables) For this size cable HDG Telecom provide below solution including: <br/> Framework type, clip-on grounding kit

Category:

Grounding Kit

Keywords:

grounding kit for 1/2\\" cable


Contact

Product Description

HDG grounding kit is made of high-purity copper and grounding wire, it's applied to the feeder grounding. The contact resistance, insulation resistance,etc.can meet the requirements of communication industry, and it can prevent the damage from relevant devices which due to lighting stroke or large current.
Each type has its own unique advantages. About the 1/2 in coaxial cable, we provide the following grounding kit options:

FRAMEWORK GROUNDING KIT FOR 1/2" CABLE

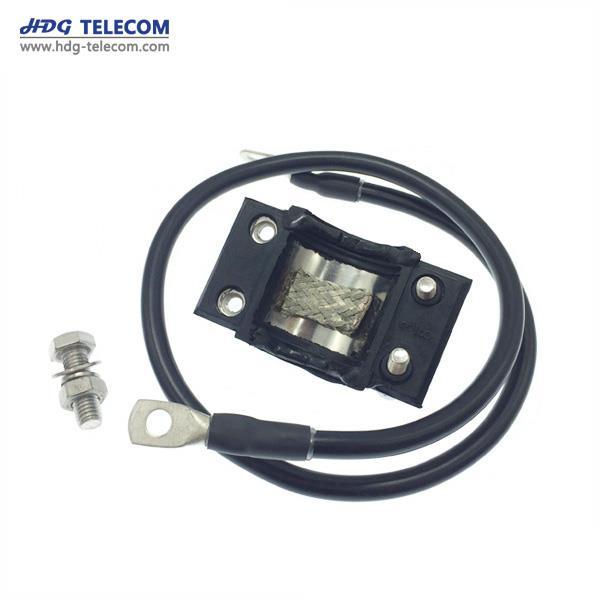

Framework grounding kit



Item NO.: GK-FW12

Ground cable: 6 AWG (13.3mm2),1.0 meter (accept customization)

Bolt: M8 x 25

Lug: M8 one hole or two hole (Factory attached or Field attached)

Contact area: Braided tinned copper strip

Each kit include: grounding kit, installation hardwares

clip-on grounding kit for 1/2" cable

Clip-on grounding kit



Item No.: GK-CO12

Ground cable: 6 AWG (13.3mm2),1.0 meter(accept customization)

Lug:M8 one hole or two hole (Factory attached or Field attached)

Copper Bolt:φ6×6

Contact area:T2 copper

Each kit include: grounding kit, installation hardwares
