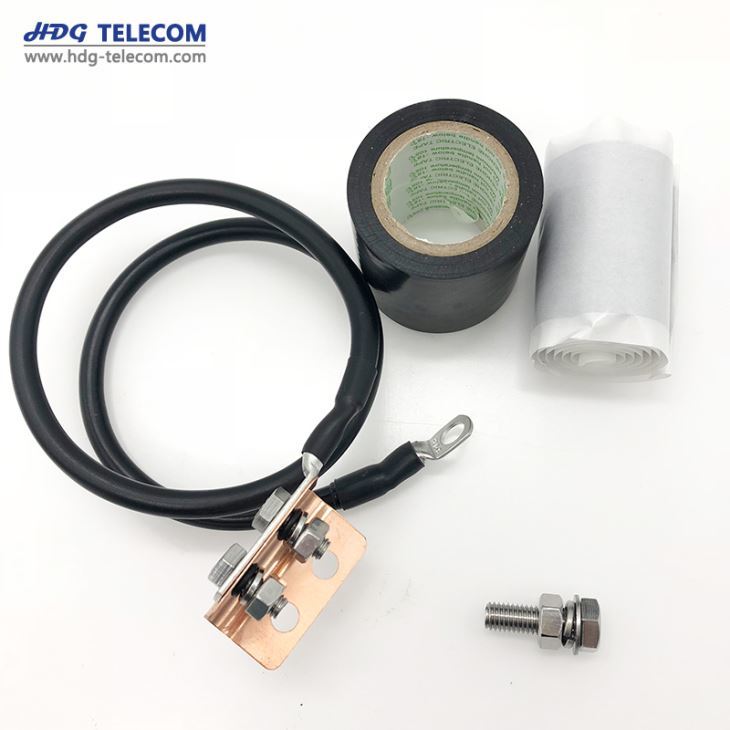

Grounding Kit For 5D-FB, LMR300, CNT-300 Cable
Type:Bolt-on grounding kit
Bolt-on Grounding Kit-VB
Small Universal Grounding Kit
Item No.:GK-BO5D
Grounding Kit For 5D-FB, LMR300 And CNT-300 Cable
Copper Wire Grounding Kit provides the most practical and effective low inductance transfer of lightning induced current from your coax to your system ground.
Applicable cable diameter range |
For outer conductor dimater on 5.7±0.1 mm, such as 5D-FB, lmr300, cnt-300 cable.
Product Advantage of grounding kit |
1. Each kit include grounding kit, installation hardwares, weatherproofing kit.
2. Weatherproofing kit are available for High Quality.
3. OEM available.
Selectable items |
Bolt-on Grounding Kit
For: 5D-FB, LMR300, CNT-300 Coaxial Cable; Item No.:GK-BO5D;
Contact Area: High quality pre-formed copper strap;
Earth wire: 6AWG(13mm²) x 1 meter(By request);
Bolt: M8×25; M10x25(By request)
Lug: M8, M10; Single Hole, Double Hole (By request).
.
Bolt-on Grounding Kit-VB
For: 5D-FB, LMR300, CNT-300 Coaxial Cable;
Item No.:GK-BO5D-VB;
Contact Area: High quality pre-formed copper strap;
Earth wire: 6AWG(13mm²) x 1 meter(By request);
Bolt: M8×25; M10x25(By request)
Lug: M8, M10; Single Hole, Double Hole (By request).
Angle Adaptor: SS304, M8 size
Small Universal Grounding Kit
For: 5D-FB, LMR300, CNT-300 Coaxial Cable;
Item No.:GK-SUNV;
Contact Area: Tinned Copper Braided;
Rivet: φ5x8.1;
Earth Wire: 6mm² x 1 meter(By request);
Bolt: M8×25.
