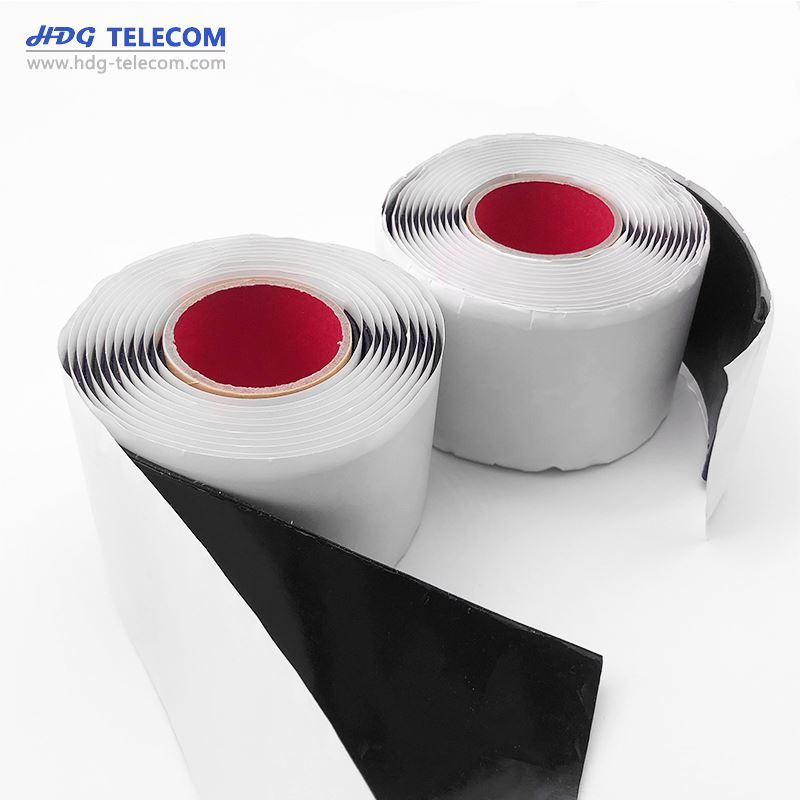

EPR Rubber Mastic Tape, Self-Fusing Tape
Material: Rubber + Mastic Regular
Size:1.65mm*38mm*3m,1.65mm*50mm*3m
Description |
Rubber mastic tape is a conformable self–fusing rubber electrical insulating and sealing tape. WT-CPT-2228 consists of an ethylene propylene rubber (EPR) backing coated with an aggressive, temperature–stable mastic adhesive. The tape is made 65 mils (1,65 mm) thick for quick application build–up. It is designed for electrical insulating and moisture sealing applications. WT-CPT-2228 can be used on copper or aluminum conductors rated at 90°C, with an emergency overload rating of 130°C. It offers excellent resistance to moisture and ultraviolet exposure and is intended for both indoor and weather exposed outdoor applications.
Application |
· Primary electrical insulation and moisture sealing in splices and terminations of solid dielectric power cable up to 2kV.
· Insulating and moisture sealing of telecommunication cable connectors in base station, antenna and aerial feeders.
· Bus bar insulation and corrosion protection.
· Cable jacketing.
· Other moisture sealing applications.
KC 80 |
Waterseal Mastic Tape - KC80
KC80 is equal to 2228.
1. Use for insulation, filling and moisture sealing in splies of all types of power cables and optical telecommunication cables. For primary insulation up to 1000volts.
2. Use for insulating and moisture sealing on bus bar.
3. Use for moisture sealing high or low voltage junction boxes and irregular splices.
Specification |
38mm*3m*1.65mm, 50.8mm*3m*1.65mm
Property |
Value |
Test Method / Reference |
Tensile strength |
1.16MPa |
ASTM D 4325 |
Elongation ad Break |
900% |
ASTM D 4325 |
Fusion |
Pass |
ASTM D 4388 |
Adhesion to Steel |
32N/50mm |
ASTM D 1000 |
Adhesion to PE |
28N/50mm |
ASTM D 1000 |
Continuous Operate Temperature |
90℃ |
ASTM D 4388 |
Emergency Overload Temperature |
130℃ |
ASTM D 4388 |
Dielectric Strength |
21KV/mm |
ASTM D 4325 |
Dielectric Constant |
2.8 |
ASTM D 4325 |
Dissipation Factor |
1% |
ASTM D 4325 |
Water Absorption |
0.20% |
ASTM D 570 |
Ozone Resistance |
Pass |
ASTM D 4388 |
UV Resistance |
Pass |
ASTM D 4388 |
Heat Exposure |
Pass at 130℃ |
ASTM D 4388 |
Xenon-are Exposure @ 1008h |
Pass |
ASTM D 4388 |
*Data in table represent average of test results and are not to be used for specification purposes. *The product user should make their own tests to determine the product's suitability for their intended use. |
