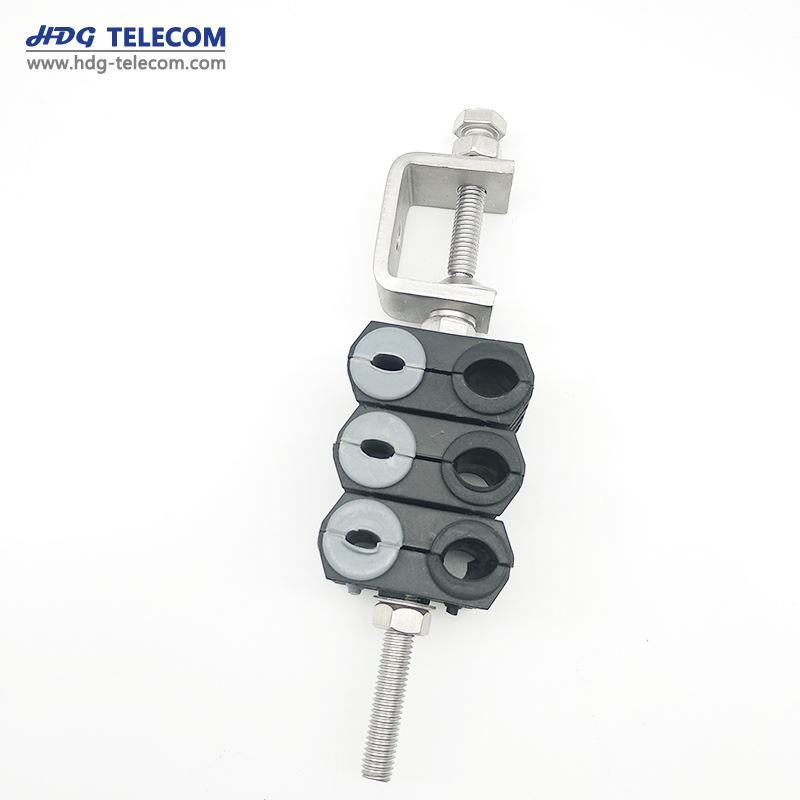

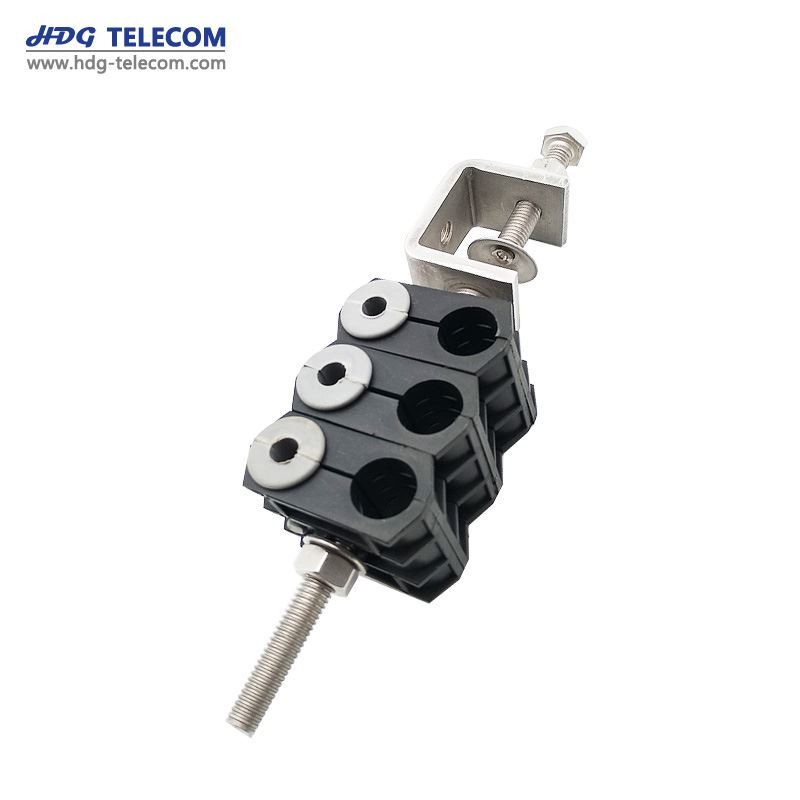

Combined Feeder Clamp For Fiber Optical Cable And DC Power Cable

Fiber & Power Feeder Clamp
Fit for 3runs optical cables and 3 runs power cables
Material: 304 stainless steel + PP + EPDM rubber
零售价
0.0
市场价
0.0
浏览量:
1000
产品编号
所属分类
Feeder Clamps
Quantity
-
+
库存:
0
关键词:
Combined Feeder Clamp
Product Details
[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[产品参数, 参数]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]

The combined feeder clamp is designed specifically for wireless application. In the 3G/4G/5G wireless networking, fiber optical cables and power cables are installed up to the outdoor cell towers.

Hybrid feeder clamp is used to fix fiber cable and power cable at the same time, the thinner hole is for optical fiber cable, and the wider hole is for DC power cable. A variety of types available depending on the numbers of cables to be secured.



Material of plastic part: Polypropylene (PP)

Material of metal part: 304 stainless steel

Threaded rod: M8 or M6

Includes: angle adapter, plastic clamp, threaded rod, washers, nuts



Product Advantages of combined feeder clamp:



1) Easy removable and reusable

2) Quick install

3) Capable to working in extrem temperature

4) Has passed SGS test report, UV test for coax block and salty spray test for SUS 304



Recommend distance of clamps: 0.5-1.0m

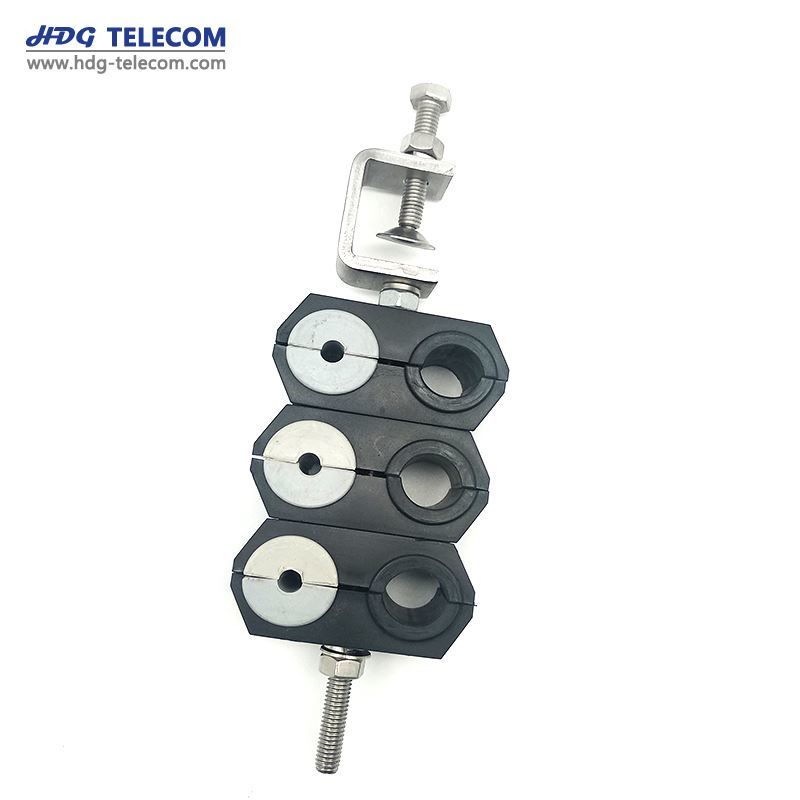

Item No.: CH-CC-13*14DHX-R7R9.5*13



Optical cable: 7.0-8.0mm with grey rubber



RRU power cable: 9.5-11.5mm with black rubber



Plastic clamp OD: 13*14mm



Material: 304 stainless steel+PP+EPDM rubber

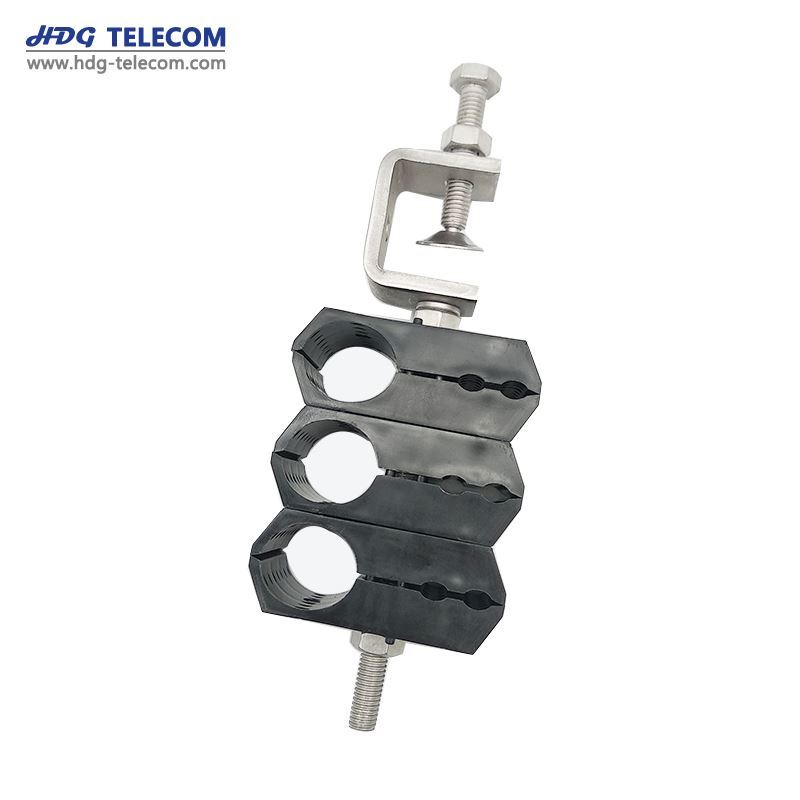

Item No.: CH-CC-12.5*16.2DHX-R7R9.5*13



Optical cable: 7.0-8.0mm with grey rubber



RRU power cable: 9.5-11.5mm with black rubber



Plastic clamp OD: 12.5*16.2mm



Material: 304 stainless steel+PP+EPDM rubber

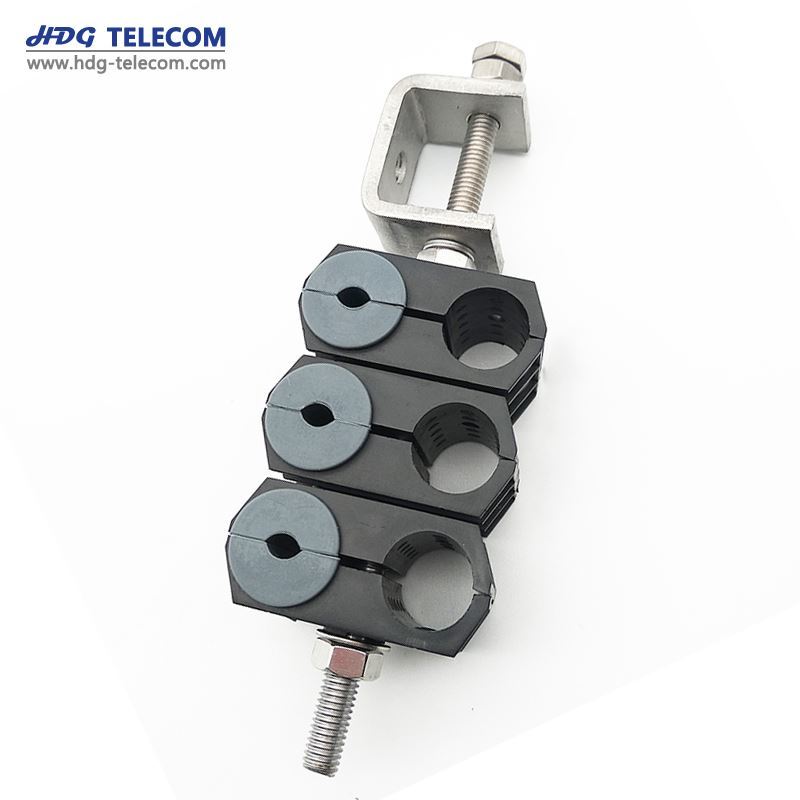

Item No.: CH-CC-7A13*14DHX-R9.5*13



Optical cable: 7.0-8.0mm



RRU power cable: 9.5-11.5mm with black rubber



Plastic clamp OD: 6.8mm & 13*14mm



Material: 304 stainless steel+PP+EPDM rubber



Reference Huawei #27150086

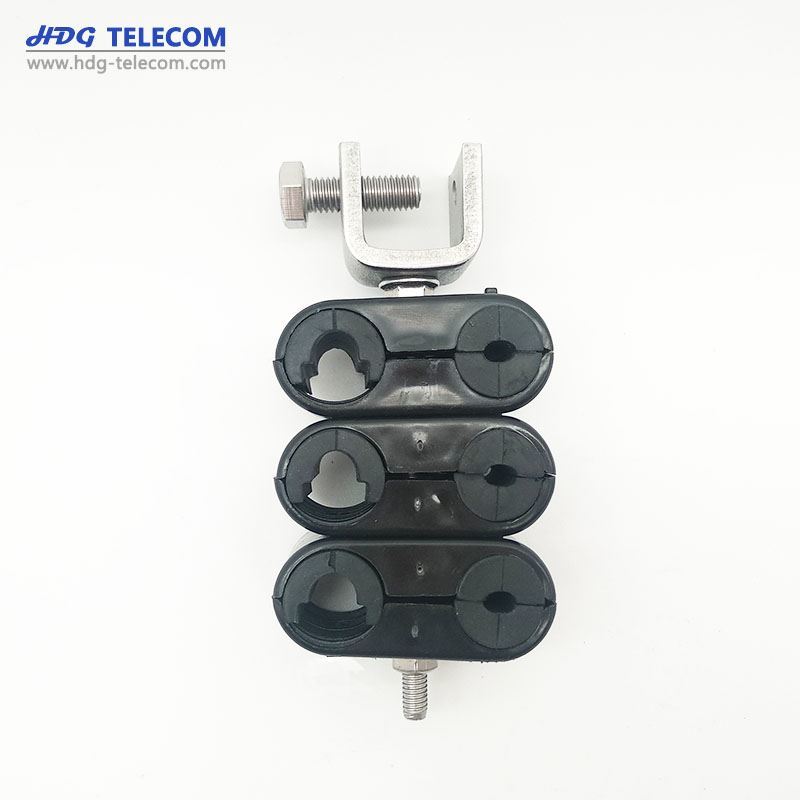

Item No.: CH-CC-20DHX-R7R15*18



Optical cable: 7.0-8.0mm with grey rubber



Power cable: 15.0-19.0mm with black rubber



Plastic clamp OD: 20.5*23mm



Material: 304 stainless steel+PP+EPDM rubber

H-CC-7A13*14DHX-R9.5*13 Optical cable OD=7.0±0.2mm

Note:

when apply 6.0/8.3 mm2 power cable, please pull out the rubber insert.

RRU power cable

(Double cores shielded)

3.3 mm2 (12AWG), OD=10.2±0.3mm
4.0 mm2, OD=12.0±0.3mm
 6.0 mm2, OD=13.6±0.3mm
8.3 mm2 (8AWG), OD=14.0±0.3mm



CH-CC-20DHX-R7R15*18 Optical cable 7mm±1.0
DC power cables 6AWG/16mm2 OD15-19mm
4AWG/25mm2 OD20-23mm

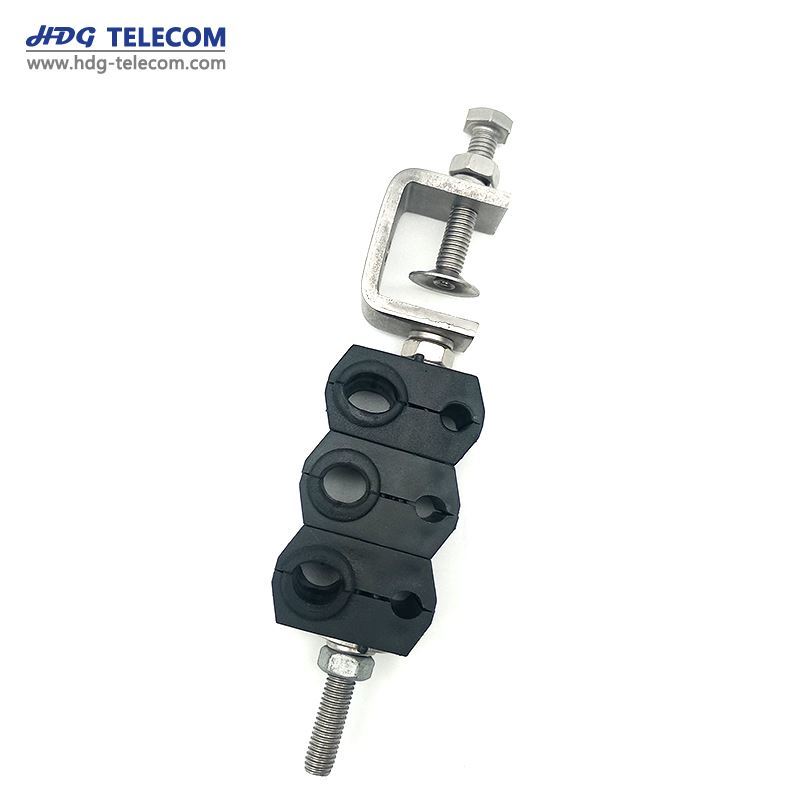

Item No.: CH-CC-7A13*14DHX



Optical cable: 7.0-8.0mm



Power cable: 13.2-14.5mm



Plastic clamp OD: 6.8mm & 13.5mm



Material: 304 stainless steel+PP+EPDM rubber

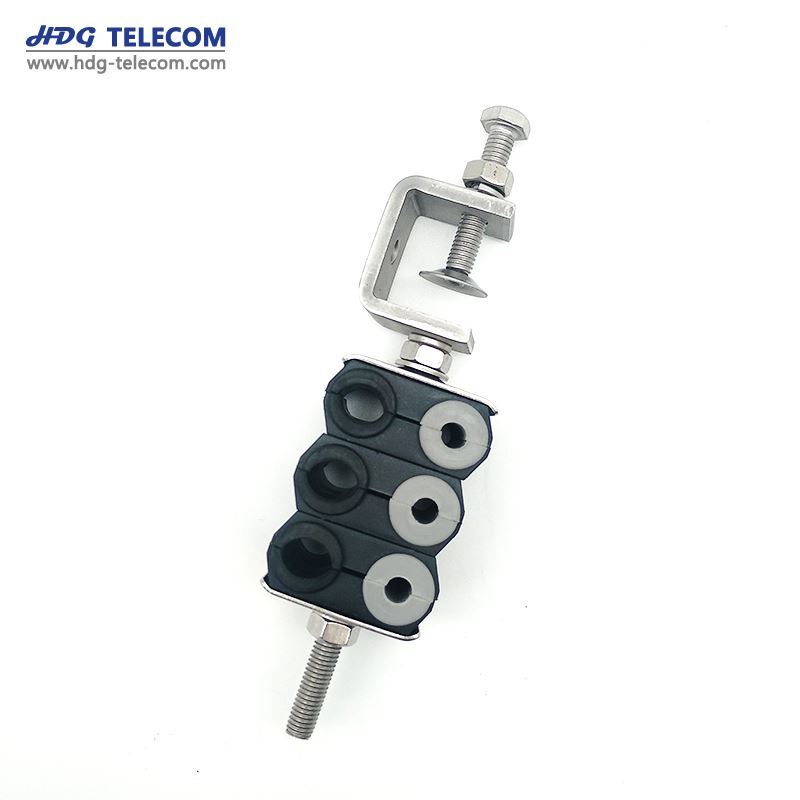

Item No.: CH-CC-13*14DHX-R5R9.5*13



Optical cable: 5.0-6.0mm



RRU power cable: 9.5-11.5mm



Plastic clamp OD: 13*14mm



Material: 304 stainless steel+PP+EPDM rubber

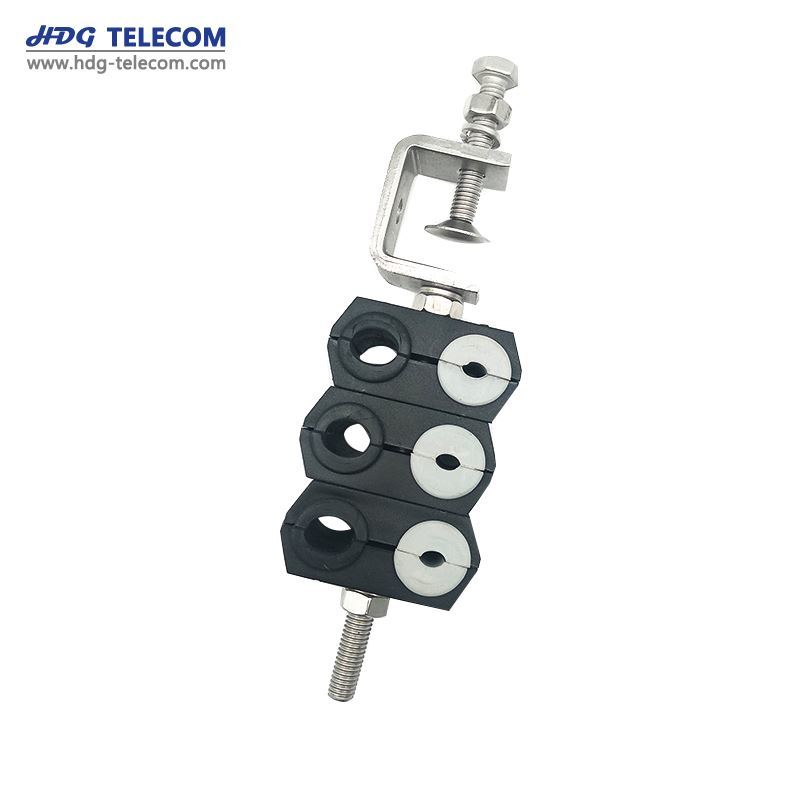

Item No.: CH-CC-13*14DHX-R4*8R9.5*13



Optical cable: 4.0-7.0mm with grey rubber



RRU power cable: 9.5-11.5mm with black rubber



Plastic clamp OD: 13*14mm



Material: 304 stainless steel+PP+EPDM rubber

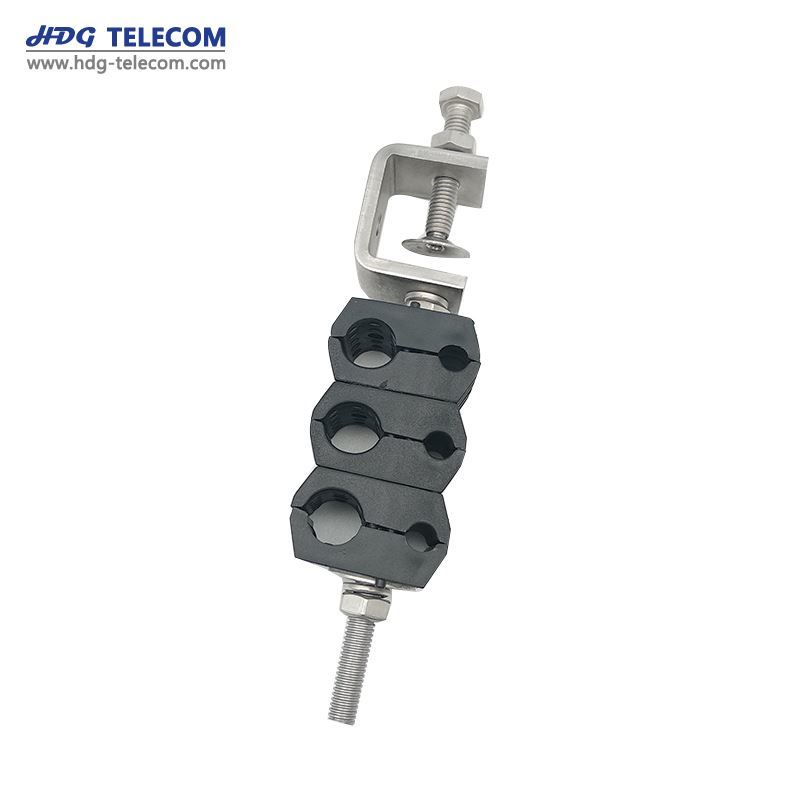

Item No.: CH-CC-14*17DHX-R4*7R9.5*13



Optical cable: 5.0-6.0mm with grey rubber



Power cable: 9.5-11.5mm with black rubber



Plastic clamp OD: 14*17mm



Material: 304 stainless steel+PP+EPDM rubber

Item No.: CH-CC-13.5*16DHX-R6.5R9*12.5



Optical cable: 6.0-7.0mm



Power cable: 9.0-11.0mm



Plastic clamp OD: 13.5*16mm



Material: 304 stainless steel+PP+EPDM rubber

Item No.: CH-CC-17DHX-R4*6R7.5*12



Optical cable: 4.0-6.0mm with black rubber



Power cable: 8.0-10.0mm with grey rubber



Plastic clamp OD: 17.0mm



Threaded rod: M6



Material: 304 stainless steel+PP+EPDM rubber

Item No.: CH-CC-16DHX-R7



Optical cable: 7.0-8.0mm with natural rubber



Power cable: 15.5-16.0mm



Plastic clamp OD: 16.0mm



Material: 304 stainless steel+PP+natural rubber

Item No.: CH-CC-18DHX-R5



Optical cable: 4.0-7.0mm with grey rubber



Power cable: 18.0-18.5mm



Plastic clamp OD: 18.0mm



Material: 304 stainless steel+PP+EPDM rubber

Item No.: CH-CC-18DHX-R7



Optical cable: 7.0-8.0mm with grey rubber



Power cable: 18.0-18.5mm



Plastic clamp OD: 18.0mm



Material: 304 stainless steel+PP+EPDM rubber

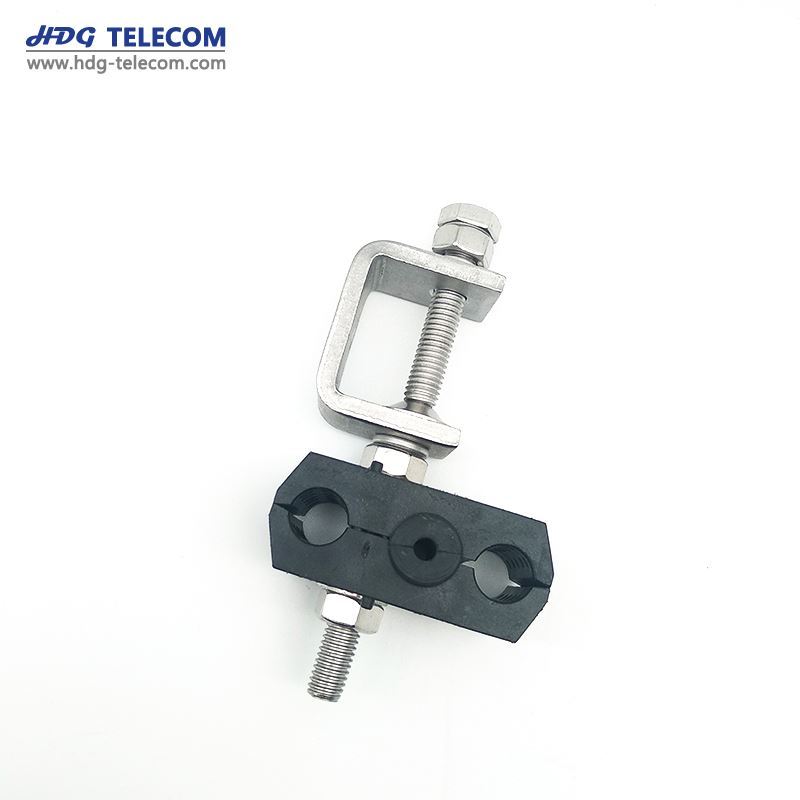

Item No.: CH-CC-6*6A3*20



Optical cable: 6.0-7.0mm with grey rubber



Power cable: 20.0-21.0mm



Plastic clamp OD: 6mm & 20mm



Material: 304 stainless steel+PP

Item No.: CC-111THX-3R



Optical cable: 4.0-7.5mm



Power cable: 8.0-18.0mm with rubber



Plastic clamp OD: 4*6mm, 6.8mm & 18mm



Material: 304 stainless steel+PP+rubber

Item No.: CH-CC-12A20DHX-R4R10



Optical cable: 4.0-10.0mm with rubber



Power cable: 10.0-20.0mm with rubber



Plastic clamp OD: 16.0mm & 29.0mm



Material: 304 stainless steel+PP+EPDM rubber

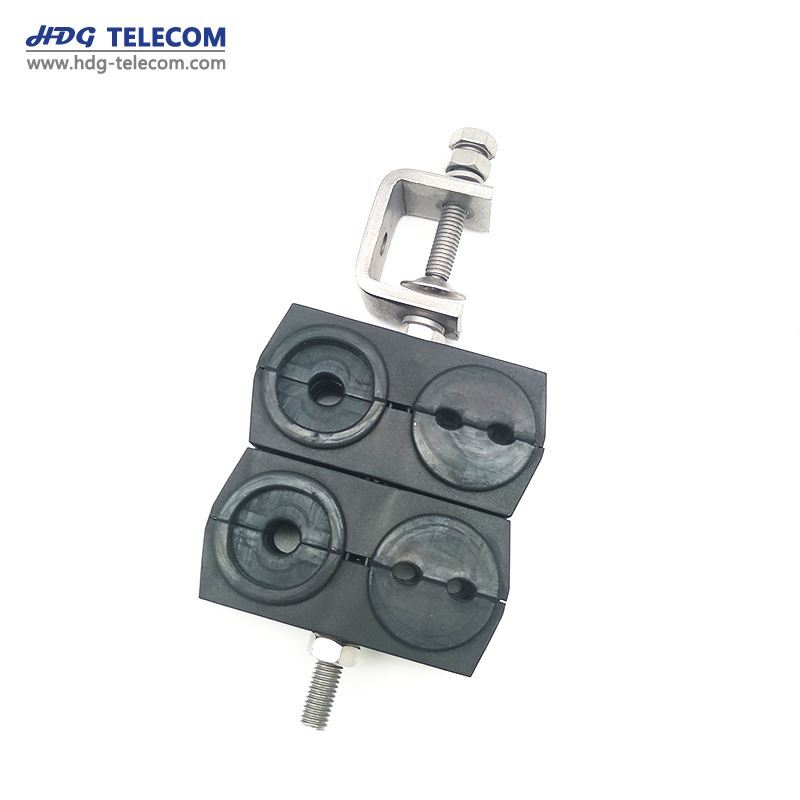

Item No.: CH-CC-29ADHX-R2*5-7R14*17



Optical cable: 2*5-7mm with rubber



Power cable: 14.0-17.0mm with rubber



Plastic clamp OD: 29.0mm



Material: 304 stainless steel+PP+EPDM rubber

Item No.: CH-CC-11THX-R5



Optical cable: 5.0-6.0mm with black rubber



Power cable: 2*10.0-11.5mm



Plastic clamp OD: 5.0mm & 12.0mm



Material: 304 stainless steel+PP+EPDM rubber

Item No.: CH-CC-6*5-7.5A3*22-24.5



Optical cable: 5.0-7.0mm



Power cable: 22.0-24.0mm



Plastic clamp OD: 5.0*7.5mm & 22.0*24.5mm



Material: 304 stainless steel+PP

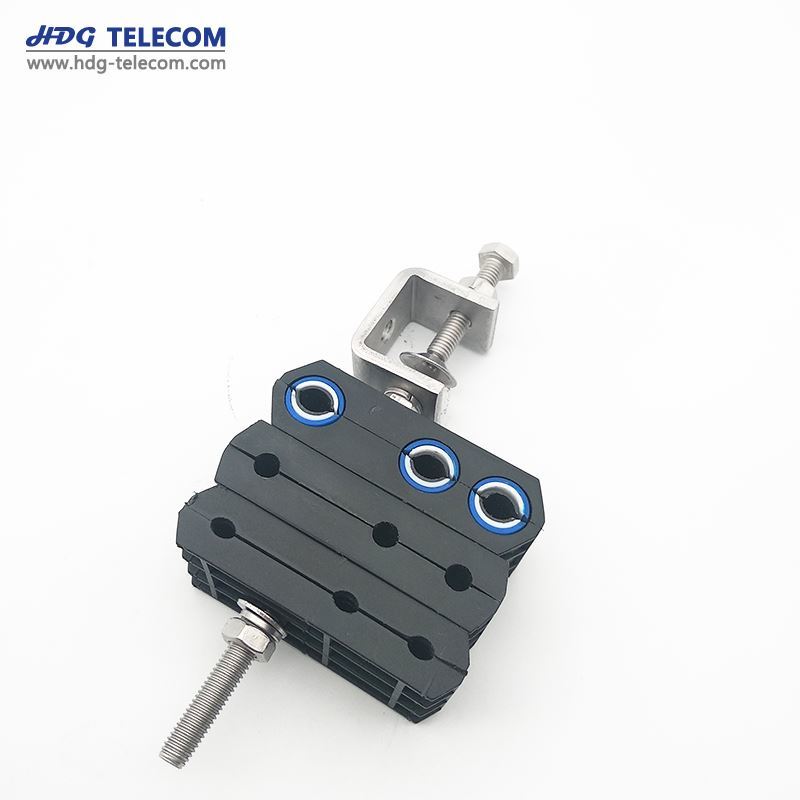

Item No.: CC-3R05-3R12



OD4.6-6.2mm cable X 3 runs.



OD11.5-12.7mm cable X 3 runs.



OD17.3-18.3mm cable, if pull out the rubber grommet.



Material: 304 stainless steel+PP.



Widely used in Ericsson network.

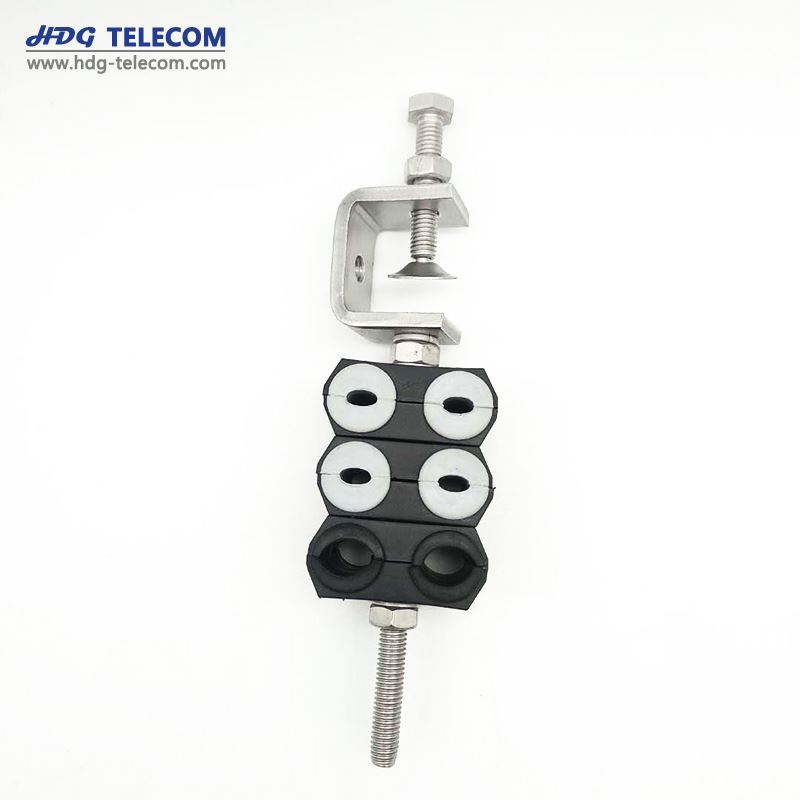

Item No.: CC-4R0507-2R0911



4 runs to clamp OD5.0-7.0mm cable.



2 runs to clamp OD9.0-11.0mm cable.



Material: 304 stainless steel+PP.
