Nylon Cable Gland

Material: UL approved nylon PA66, EPDM rubber.<br> Thread specification: Metric. PG, G(PF). NPT.<br> Protection level:IP68-10<br> Color:Black, grey or as required

Category:

Nylon Cable Gland

Keywords:

Type A Nylon Cable Gland

Type B Nylon Cable Gland

UL approved nylon PA66 cable gland

nylon cable gland

manufacturers

supplier


Contact

Product Description

Special design of clamping die and rubber part, large range in clamping cable, ultra-strong stretching resistance, waterproof, dustproof, and highability to resist, salt. acid, alkali, alcohol, grease and general solvent.


  IP rate IP68-10
  Working temperature

  -40 to 100℃ in static state, or instantanious heat resistance up to 120℃;

  -20 to 80℃ in dynamic state, or instantanious heat resistance up to 100℃.

  Features

  The claws and seals of excellent design, sealing nut have a click sound and re-open.

  Can hold cable firmly and have a wider cable range.

  Resistant to salt water, weak acid, alcohol, oil, grease and common solvency.

  Color   Black, Gray, and other colors available upon request.



Selectable items

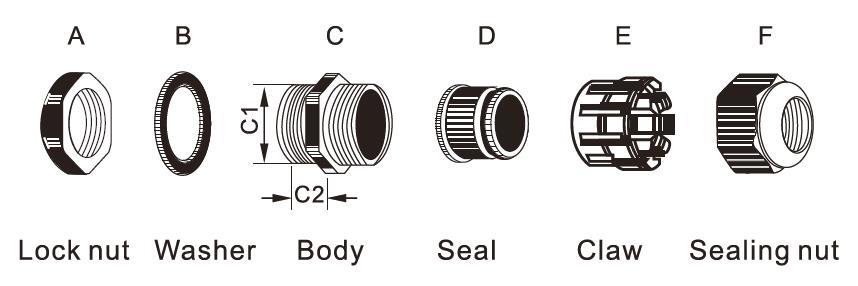

Type A for Seperated claw

  Material

UL approved nylon PA66 (Flammability UL 94V-2) for A,C,E,F parts. (Accept to make flammability UL 94V-0).

EPDM rubber for B, D parts (Also accept to make supper rubber, resist high temperature, resist strong acid/alkali, etc).

Thread Metric M12x1.5
M16x1.5
M20x1.5
M22x1.5
M25x1.5
M32x1.5
M40x1.5
M50x1.5
M63x1.5
M75x1.5
PG PG7
PG9
PG11
PG13.5
PG16
PG21
PG29
PG42
PG48
G(PF) G(PF)1/4"
G(PF)3/8"
G(PF)1/2"
G(PF)3/4"
G(PF)1"
G(PF)1-1/4"
G(PF)1-1/2"
G(PF)2"

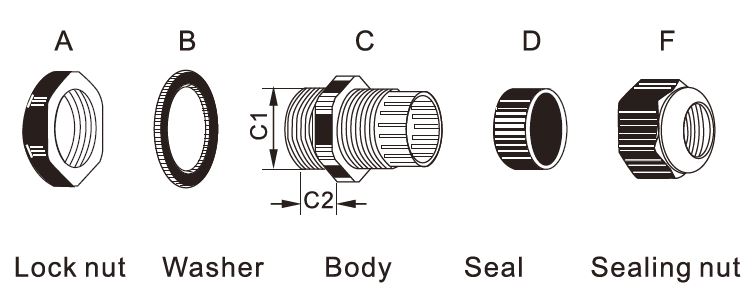

Type B for Integrated claw

Material UL approved nylon PA66 (Flammability UL 94V-2) for A,C,F parts. (Accept to make flammability UL 94V-0).

EPDM rubber for B, D parts (Also accept to make supper rubber, resist high temperature, resist strong acid/alkali, etc).

Thread

Metric

M8x1.5
M10x1.5
M12x1.5
M16x1.5
M18x1.5
M20x1.5
M22x1.5
M24x1.5
M25x1.5
M32x1.5
M36x1.5
M40x1.5
M50x1.5
M63x1.5
PG PG7
PG9
PG11
PG13.5
PG16
PG19
PG21
PG25
PG29
PG36
PG42
PG48
G(PF) G(PF)1/4"
G(PF)3/8"
G(PF)1/2"
G(PF)3/4"
G(PF)1"
G(PF)1-1/4"
G(PF)1-1/2"
NPT NPT1/4"
NPT3/8"
NPT1/2"
NPT3/4"
NPT1"
NPT1-1/4"
