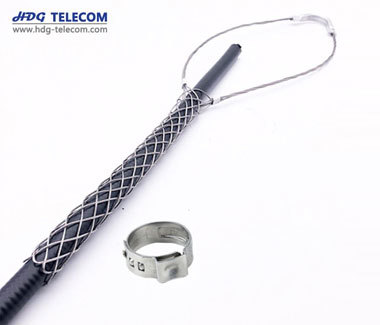

Lace-Up Hoisting Grip For Coaxial Cable And Elliptical Waveguide

Item No.:HG-L
Material:Stainless Steel
Size from 1/4" to 2-1/4", also support customization
零售价
0.0
市场价
0.0
浏览量:
1000
产品编号
Quantity
-
+
库存:
0
关键词:
Lace-Up Hoisting Grip
Product Details
[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[产品参数, 参数]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]

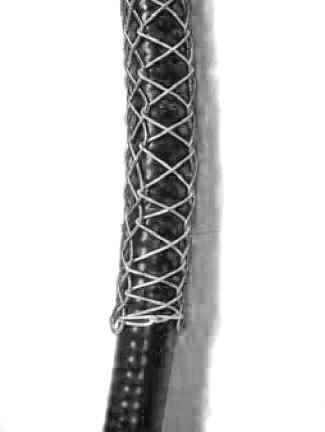

Lace-up hoisting grip is designed for middle part of the coaxial cable and elliptical waveguide, which is applied to wire's hauling, fixing and dragging. It provides an effective means for hoisting coax and elliptical waveguide into position and can be utilized to provide additional support once in place.



The lace-up design allows the hoisting grip to be attached even when the run has been connectorized and facilitates easy positioning at 200 (61m) increments on long coax runs.




General specifications



Application

coax support

Size

1/4" to 6"

Feature

Lace up at any point on coax

Design

Open mesh with single eye support

Material

Stainless steel 304

Include

Mesh Grip, Lacing wire, Installation instructions



Product code



HG14-L

This hoisting grip is appropriate to 1/4 in ATCB-B01 series RET cable, using 1.0mm stainless steel 304 material.






 HG38-L

This hoisting grip is appropriate to 3/8 in coaxial cable or 8-12mm corrugated, smoothwall cable, CNT- 400, LMR400 braided cable, using 1.0mm stainless steel 304 material. Sleeve length : 20cm









HG12-L

This hoisting grip is appropriate to 1/2 in coaxial cable and elliptical waveguide 180 and 220, using 1.0mm stainless steel 304 material. Sleeve length : 25cm





HG58-L

This hoisting grip is appropriate to 5/8 in coaxial cable, elliptical waveguide 85, 90, 127, 132 and PWRT-608 and 21.9-22.2mm cable, using 1.2mm stainless steel 304 material. Sleeve length : 25cm









HG78-L

This hoisting grip is appropriate to 7/8 in coaxial cable, 26-29mm cable, elliptical waveguide 77, and  HELIAX cable, using 1.5mm stainless steel 304 material. Sleeve length : 34cm




HG114-L

This hoisting grip is appropriate to 1-1/4 in coaxial cable, 38-40mm cableand elliptical waveguide 64, using 1.5mm stainless steel 304 material. Sleeve length : 65cm

















HG158-L

This hoisting grip is appropriate to 1-5/84 in coaxial cable and elliptical waveguide 44, 52, and 63, using 1.5mm stainless steel 304 material. Sleeve length : 70cm






HG214-L

This hoisting grip is appropriate to 2-1/4 in coaxial cable and elliptical waveguide 37, using 1.5mm stainless steel 304 material. Sleeve length : 90cm















HG300-L

This hoisting grip is appropriate to 3 in coaxial cable and elliptical waveguide 28 and 34, using stainless steel 304 material.






HG400-L

This hoisting grip is appropriate to 4 in coaxial cable, using stainless steel 304 material.









                                                                                           HG512-L

                                                                                          This hoisting grip is appropriate to 5-1/2 in coaxial cable, using stainless steel 304 material.









                                                                                           HG600-L

                                                                                            This hoisting grip is appropriate to 6 in coaxial cable, using stainless steel 304 material.







未找到相应参数组,请于后台属性模板中添加
上一个
下一个

Part Number

Item No.:HG-L
Add to Inquiry

Documentation & Downloads

  • Datasheet-for-lace-up-hoisting-grip

Datasheet-for-lace-up-hoisting-grip
