PRODUCTS

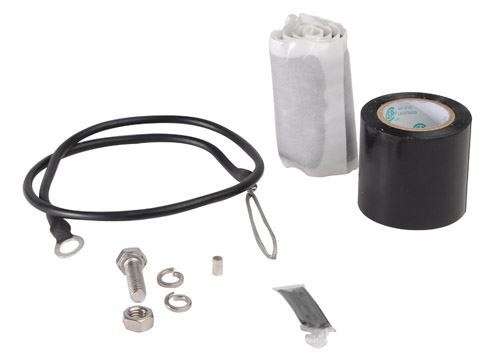

Grounding Kit For 3/8 In Coaxial Cable

Spec.:For 3/8 in coaxial cable (Compatible with corrugated coaxial cables, braided coaxial cables) For this size cable HDG Telecom provide below solution including:
Framework type, Bolt-on grounding kit, Standard universal grounding kit, Standard grounding kit, Small universal grounding kit
零售价
0.0
市场价
0.0
浏览量:
1000
产品编号
GK-XXX
所属分类
Grounding Kit
Quantity
-
+
库存:
0
关键词:
grounding kit for 3/8\" cable
Product Details
[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[产品参数, 参数]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]

HDG grounding kit (earthing kit) is used to protect base station system from lightning current. As a grounding kit for fixed equipment, it is suitable for communication base station, repeater stations, indoor coverage system, wireless paging and microwave communication system. It can also be used in different high and low temperature range.
Each type has its own unique advantages. About the 3/8 in coaxial cable, we provide the following grounding kit options:

grounding kit for 3/8" cable

Framework grounding kit



Item No.: GK-FW38 (Suitable for LMR400)

Grounding lead: 6AWG/16mm2, length 1.0 meter or customized

Lug:M8 one hole or two hole  (Factory attached or Field attached)

Contact area:Braided tinned copper strip

bolt-on grounding kit for 3/8" cable

Bolt-on grounding kit



Item No.: GK-BO38

Ground cable:6 AWG (13.3mm2),1.0 meter (accept customization)

Bolt:M8 x 25

Lug:M8 one hole or two hole  (Factory attached or Field attached)

Contact area:T2 Copper

Each kit include: grounding kit, installation hardwares

242948 grounding kit for 3/8" cable

Standard universal grounding kit



Item No.: GK-242948

Ground cable:6 AWG BV,1.0 meter (accept customization)

Tie-wraps:3*150mm

Lug:M8 one hole or two hole  (Factory attached or Field attached)

Contact area:T2 Copper

Each kit include: grounding kit, installation hardwares

standard grounding kit for 3/8" cable

Standard grounding kit



Item No.: GKK-STD

Ground cable: 16mm2, 1.0 meter (accept customization)

Cross screw:M4 x 8

Lug:M8 one hole or two hole  (Factory attached or Field attached)

Contact area:T2 Copper

Each kit include: grounding kit, installation hardwares

small universal grounding kit for 3/8" cable

Small universal grounding kit



Item No.: GK-SUNV

Ground cable: 6mm2, 1.0 meter (accept customization)

Rivet Materials:Φ5 X 8.1, Copper

Lug:M8 one hole  (Factory attached or Field attached)

Each kit include: grounding kit, installation hardwares



未找到相应参数组,请于后台属性模板中添加

Part Number

GK-BO38
Add to Inquiry
GK-FW38
Add to Inquiry
GK-242948
Add to Inquiry
GKA-SUNV
Add to Inquiry
GKK-STD
Add to Inquiry

Documentation & Downloads

  • grounding kit for 3/8in cable datasheet

grounding kit for 3/8in cable datasheet
