Grounding Kit For 1-5/8 In Coaxial Cable

Spec.:For 1-5/8 in coaxial cable (Compatible with corrugated coaxial cables, braided coaxial cables) For this size cable,HDG Telecom provide below solution including: <br/> Framework type, clip-on grounding kit

Category:

Grounding Kit

Keywords:

grounding kit for 1-5/8\\\" cable


Contact

Product Description

The grounding kit (earthing kit) is used for communication base station, repeater stations, indoor coverage system, wireless paging and microwave communication system. It is capable of preventing damage to the equipment by lightning or high currents.
HDG Telecom has designed a grounding solution for 1-5/8 coaxial cable. We provide the following options:

clip-on grounding kit for 1-5/8" cable

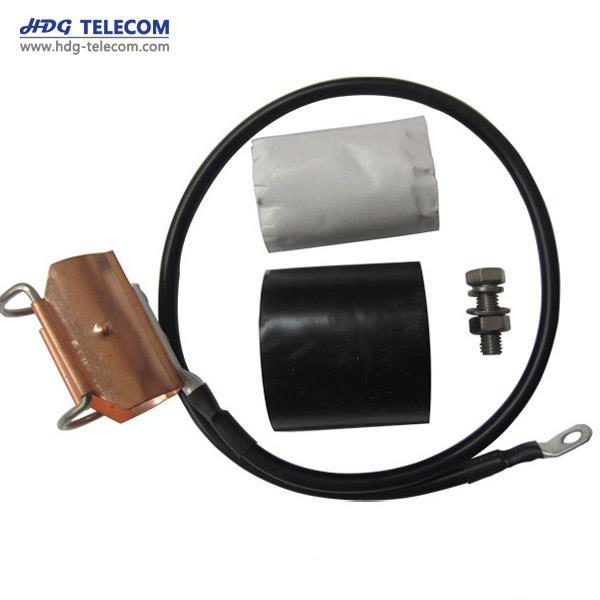

Clip-on grounding kit



Item No.: GK-CO158

Ground cable: 6 AWG (13.3mm2),1.0 meter(accept customization)

Lug:M8 one hole or two hole (Factory attached or Field attached)

Copper Bolt:φ6×6

Contact area:T2 copper

Each kit include: grounding kit, installation hardwares

framework grounding kit for 1-5/8" cable

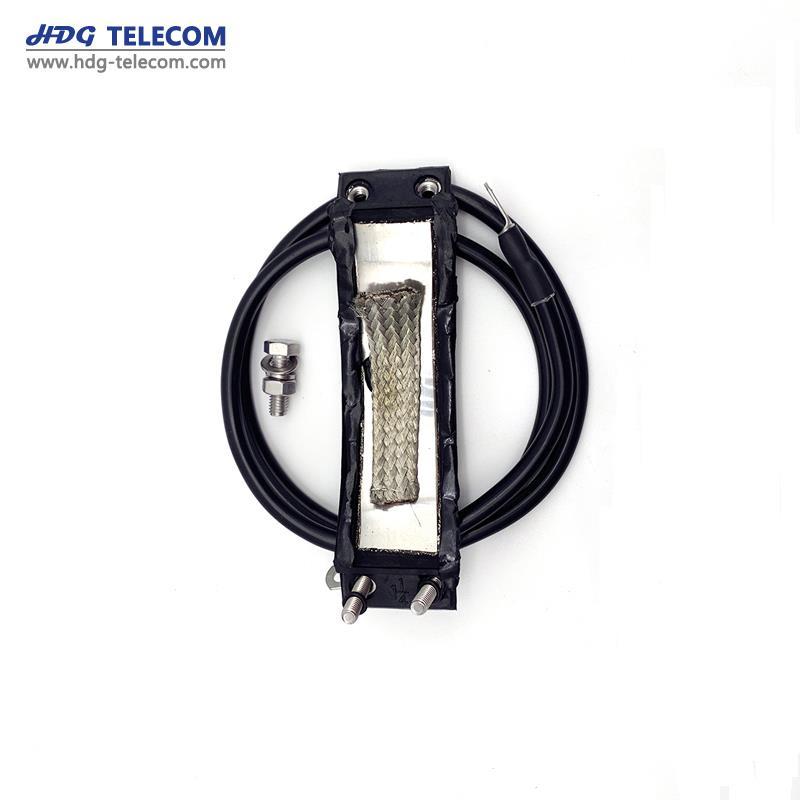

Framework grounding kit



Iterm No.: GK-FW158

Ground cable:6 AWG (13.3mm2),1.0 meter (accept customization)

Lug:M8 one hole or two hole (Factory attached or Field attached)

Bolt:M8 x 25

Contact area:Braided tinned copper strip

Each kit include: grounding kit, installation hardwares
